TIM series Automatic Granular Ice Maker (transparent bullet ice)


COMPANY : Tryte Technology (H.K.) Limited
ADD : UNIT 04, 7/F, BRIGHT WAY TOWER, NO. 33 MONG KOK ROAD, KOWLOON, HONGKONG.
TEL:00852-2389298
FAX: 00852-35902333
CELL:0086-15367067787(Robin)
SITE : www.trytetc.com
SKYPE : live:myformat666
EMAIL : sale@trytetc.com
more>>>

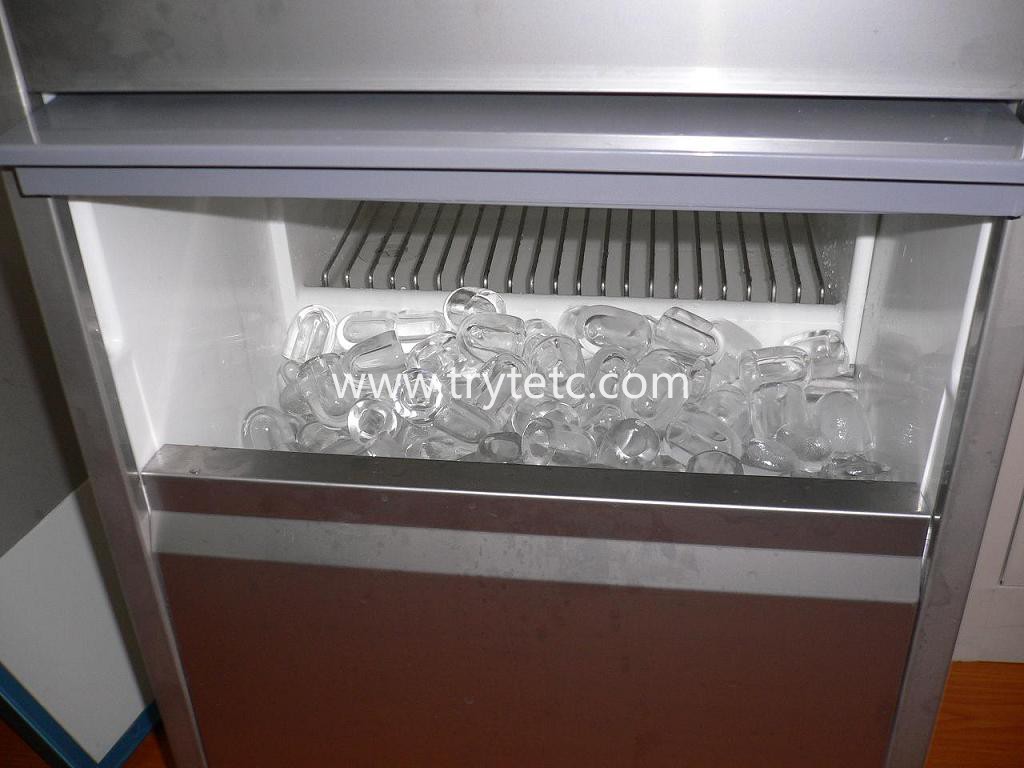

  • Name: TIM series Automatic Granular Ice Maker (transparent bullet ice)
  • Model : TIM series
  • Erp code: 1000000095
  • | Share


Features:

  • Compact design, Luxurious appearance.

  • Full automatic running and easy to use.

  • CIM-25A with front air intake and exhaust in back, others with air intake and exhaust in cabinet side.

  • A power-overloading protecting device, water shortage auto-detecting
    system and ice storage full control device.

  • High efficiency CFC free compressor, economical and low energy consumption.

    IM-25图片.jpg  14625226853424.jpg


Technical Parameters:


Model

TIM-25

TIM-50

TIM-80

TIM-100

CIM-120

Capacity(kg)/24h

25

50

80

100

120

Ice storage(kg)

6

13

16

55

55

Size(mm)

380×543×662

398×543×682

548×611×823

680×611×1050

680×611×1050

Packing dimension(mm)

457×621×710

463×613×730

625×690×872

755×690×1100

755×690×1100

NW/GW(kg)

30/34

47/52

50/55

70/78

72/80

Input Power (W)

240

380

650

680

750

Loading quantity(20’HQ)

135

135

54



Loading quantity(40’HQ )

285

285

171



Cooled type

Air-cooled

Shell Material

Stainless steel

Refrigerant

CFC R134a

Ice Shape

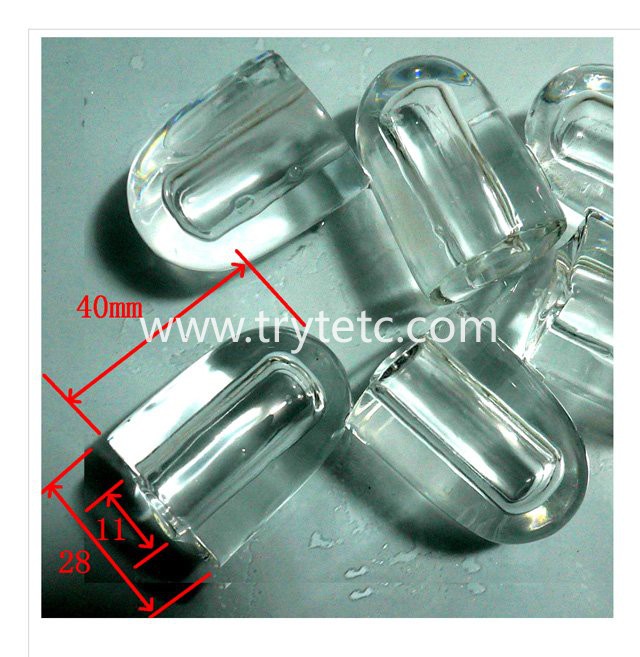

bullet -shaped ice, Diameter 2.5cm, length 3.5cm

Voltage range is 187~242V/50Hz and 110V/60Hz


Technical Parameters:


Model

TIM-25

TIM-50

TIM-80

TIM-100

CIM-120

Capacity(kg)/24h

25

50

80

100

120

Ice storage(kg)

6

13

16

55

55

Size(mm)

380×543×662

398×543×682

548×611×823

680×611×1050

680×611×1050

Packing dimension(mm)

457×621×710

463×613×730

625×690×872

755×690×1100

755×690×1100

NW/GW(kg)

30/34

47/52

50/55

70/78

72/80

Input Power (W)

240

380

650

680

750

Loading quantity(20’HQ)

135

135

54



Loading quantity(40’HQ )

285

285

171



Cooled type

Air-cooled

Shell Material

Stainless steel

Refrigerant

CFC R134a

Ice Shape

bullet -shaped ice, Diameter 2.5cm, length 3.5cm

Voltage range is 187~242V/50Hz and 110V/60Hz
