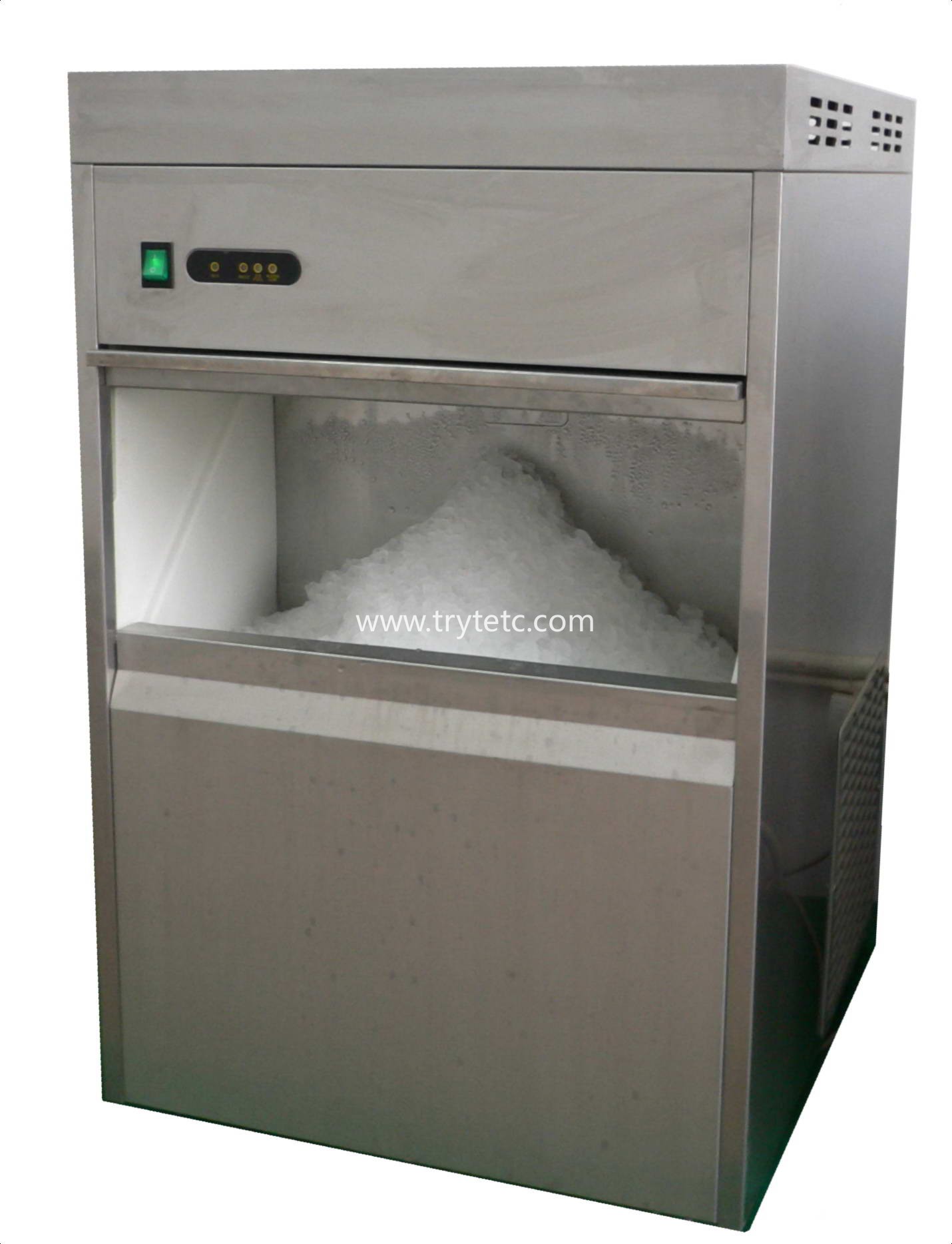

FMS Series Flake Ice Maker, lab special used


COMPANY : Tryte Technology (H.K.) Limited
ADD : UNIT 04, 7/F, BRIGHT WAY TOWER, NO. 33 MONG KOK ROAD, KOWLOON, HONGKONG.
TEL:00852-2389298
FAX: 00852-35902333
CELL:0086-15367067787(Robin)
SITE : www.trytetc.com
SKYPE : live:myformat666
EMAIL : sale@trytetc.com
more>>>

  • Name: FMS Series Flake Ice Maker, lab special used
  • Model : FMS Series
  • Erp code: 1000000094
  • | Share




FMS series flake ice maker machine special for laboratory use.


Features:

  • Compact design, Luxurious appearance.

  • Adopted high-quality stainless steel outer skin, anti-corrosion and durable, independent of one structure, compact and simple, space-saving.

  • Cabinet insulation is CFC-free foam, fluorine-free antibacterial type inner, energy saving and environmental protection.

  • High efficiency CFC-free R134a compressor, components is detected by SGS Company, economical and in line with EU RoHs environmental requirements.

  • TUV or VDE safety certification for electrical safety components

  • Auto microcomputer control & running, easy to use.

  • Adopted Italian Haitec two-stage reducers, low noise, smooth and reliable operation. Cooling holes and fans in the top of the machine to ensure reducer motor reliable operation under high temperature and harsh conditions.

  • Small ice style and practical.

  • Tank float type water system to ensure that no residual water more than water, no de-icing process, absolute loss, the residual water, saving water and energy.

  • Ice full display, lack of water, too cold protection, fault warning display protective shutdown. The machine will automatically shut down by full/lack of water, automatically boot when the failure removed, with automatic memory & recovery function.

  • Small granular snow ice, designed for the laboratory.

  • Snow flake-shaped ice is widely used in hospitals, schools, laboratories, research institutes and other occasions as well as supermarket food preservation, fishing, cold storage, medical applications, chemical, food processing industry, a wide range of applications.

  • A power-overloading protecting device, water shortage auto-detecting system and ice storage full control device.

  • Power supply can be 220V/50Hz ±10%, (110V/60Hz, 220V/60Hz can be customizable).

    IMS-100-x OPEN.jpg        雪花制冰机1.jpg


Parameters:

Model

Capacity
(kg)/24h

Ice storage
(kg)

water
consumption
(L/H)

Size
(mm)

Dimension
(mm)

NW
(kg)

GW
(kg)

Input Power
(W)

FMS-20

20

10

≤0.8

300×493×547

377×571×595

32

36

180

FMS-30

30

10

≤0.8

300×493×547

377×571×595

32

36

180

FMS-40

40

15

≤1.6

380×543×712

457×621×760

40

45

280

FMS-50

50

15

≤2.0

380×543×722

457×621×770

40

45

280

FMS-70

70

25

≤2.9

548×611×883

625×690×932

57

62

420

FMS-85

85

25

≤3.5

548×611×883

625×690×932

57

62

420

FMS-100

100

25

≤4.1

548×611×883

625×690×932

58

64

420

FMS-130

130

35

≤5.4

548×611×883

625×690×952

62

68

478

FMS-150

150

35

≤6.2

635×611×945

712×690×994

70

76

500

FMS-200

200

55

≤8.3

680×641×1102

757×720×1150

85

91

805

FMS-250

250

55

≤10.4

680×641×1102

757×720×1150

100

106

900

FMS-300

300

55

≤12.5

720×641×1150

797×720×1200

100

106

1370




Parameters:

Model

Capacity
(kg)/24h

Ice storage
(kg)

water
consumption
(L/H)

Size
(mm)

Dimension
(mm)

NW
(kg)

GW
(kg)

Input Power
(W)

FMS-20

20

10

≤0.8

300×493×547

377×571×595

32

36

180

FMS-30

30

10

≤0.8

300×493×547

377×571×595

32

36

180

FMS-40

40

15

≤1.6

380×543×712

457×621×760

40

45

280

FMS-50

50

15

≤2.0

380×543×722

457×621×770

40

45

280

FMS-70

70

25

≤2.9

548×611×883

625×690×932

57

62

420

FMS-85

85

25

≤3.5

548×611×883

625×690×932

57

62

420

FMS-100

100

25

≤4.1

548×611×883

625×690×932

58

64

420

FMS-130

130

35

≤5.4

548×611×883

625×690×952

62

68

478

FMS-150

150

35

≤6.2

635×611×945

712×690×994

70

76

500

FMS-200

200

55

≤8.3

680×641×1102

757×720×1150

85

91

805

FMS-250

250

55

≤10.4

680×641×1102

757×720×1150

100

106

900

FMS-300

300

55

≤12.5

720×641×1150

797×720×1200

100

106

1370
