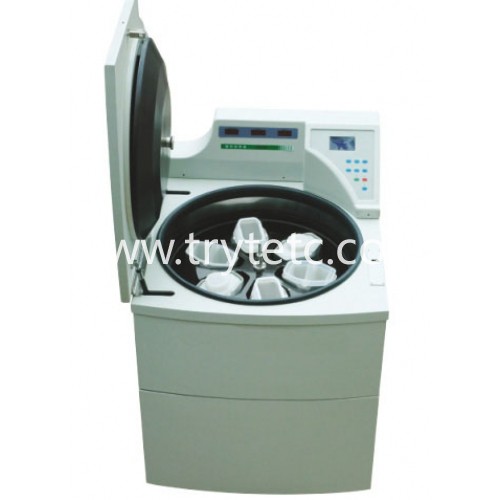

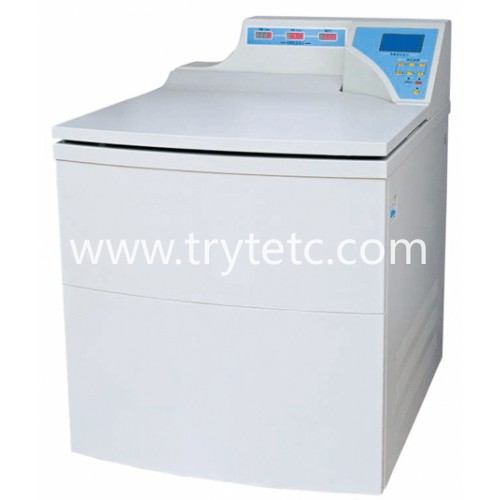

TR-TC-DL7M Large capacity Refrigerated Centrifuge 7000rpm, 6×1000mlAngle Rotor, 11500×g

Name: TR-TC-DL7M Large capacity Refrigerated Centrifuge 7000rpm, 6×1000mlAngle Rotor, 11500×g
Model : TR-TC-DL7M

Erp code: 9000000416

| Share

Features:

This centrifuge use the powerful frequency control of motor by SNMA ELECTRIC MOTOR CO., LTD which is of brushless, and the converter which is from SIEMENS Company, enables the drive system to work more stably, more reliably, less noisily and lengthened service life.
Use the compressor from CENTURY TECUMSEH EUROPE REFRIGERATIO EQUIPMENT CO., LTD France, with the controlled temp technology of pair of way by refrigerating or heating to meet the temperature control-accuracy
Soft-Touch panel, liquid & digital display programmable operation, DL7M makes it easy to use operator interface.
To ensure high-quality separations form choosing properly acceleration and deceleration, DL7M lets you control the rates of acceleration & deceleration from 0-8 profiles; you can quickly recall up to 9 daily use programmable operations with RCF value calculating automatically.
With the self-diagnostic system DL7M is provided with high-strength chamber-coating and protective means for imbalance, over temperature, over speed and electronic lock so it is safe and reliable to use it.

Technical Data:

Order Id	TR-TC-XZ8M	TR-TC-DL7M
Max. Speed	8000rpm	7000r/min
Max .RCF	14336×g	11500×g
Max. Capacity	6×1000ml	6×1000ml
Temp Range	-20℃ ~ +40℃	-15 ~ +35
Speed Accuracy	±20r/min	±20r/min
Temp Accuracy	±-1	±-1
Timer Range	0 ~ 90min	0 ~ 90min
Ac/Dc Rate	0 ~ 8	0 ~ 8
Control & Drive	Microprocessor Control/ Direct Drive	Microprocessor Control/ Direct Drive
Daily-use Program	9	9
Motor Power	4Kw	4Kw
Refrigerator Power	3Kw	3Kw
Noise	≤65dB	≤65dB
Power	AC220V 50HZ 25A	AC220V 50HZ 35A
Weight	500Kg	500Kg
Dimension	860×960×1200mm (L×W×H)	860×960×1200mm (L×W×H)

Technical Data:

Order Id	TR-TC-XZ8M	TR-TC-DL7M
Max. Speed	8000rpm	7000r/min
Max .RCF	14336×g	11500×g
Max. Capacity	6×1000ml	6×1000ml
Temp Range	-20℃ ~ +40℃	-15 ~ +35
Speed Accuracy	±20r/min	±20r/min
Temp Accuracy	±-1	±-1
Timer Range	0 ~ 90min	0 ~ 90min
Ac/Dc Rate	0 ~ 8	0 ~ 8
Control & Drive	Microprocessor Control/ Direct Drive	Microprocessor Control/ Direct Drive
Daily-use Program	9	9
Motor Power	4Kw	4Kw
Refrigerator Power	3Kw	3Kw
Noise	≤65dB	≤65dB
Power	AC220V 50HZ 25A	AC220V 50HZ 35A
Weight	500Kg	500Kg
Dimension	860×960×1200mm (L×W×H)	860×960×1200mm (L×W×H)
