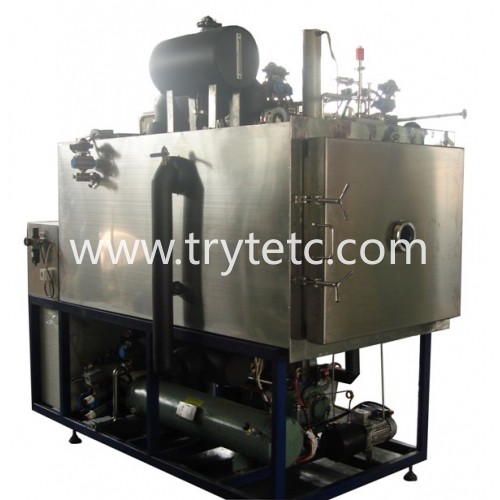

TR-200F Series Pilot Freeze dryer lyophilizer 2.0m2, 25kg/24 hours

Name: TR-200F Series Pilot Freeze dryer lyophilizer 2.0m2, 25kg/24 hours
Model : TR-200F Series

Erp code: 1000000090

| Share

Major Characteristics:

The process of prefreezing and drying finishes in situ. The freeze dryer is equipped with observation windows and the drying process is intuitive.
The temperature error is less than or equal 1℃.The drying effect is uniform.
The partition board temperature is adjustable and controlled.
The drying chamber and cold trap is separated so the water-capture capability is higher and the drying time is shorter.
PID control. Display drying curve.
The sample tray is square so it’s easy to clean and operate.
Valve with nitrogen is optional.
The drying chamber adopts transparent organic glass door the changing process of material is clear.
The test device is optional.

Technical indices:

TR-10F Series	Model	TR-200F-R		TR-200F-TP
	Specification	Normal type		Stopper for seal the vials
Drying chamber	Freeze-drying area	2.25 m²		1.98 m²
	Shelves	5+1 layer		4+1 layer
	Shelf Temperature	-50~70°C
	Shelf Temp. Accuracy	+/- 1°C
	Distance between trays	100mm
	Size of shelves	50090015 mm		810*610
Vials load capacity	φ22 Bottle (PCS)	4100		4000
	φ16Bottle (PCS)	7800		7200
	φ12 Bottle (PCS)	14400		13400
Cold trap	Cold trap temperature	≤-70°C
	Water-capture capability	25 Kg/24h		25 Kg/24h
	Material Capacity	25L		25L
	Defrost	Electric		spray + soaking
Basic parameters	Vacuum degree	≤10 Pa		≤10 Pa (Range:1~300Pa)
	Style of cooling	Wind Cooling (Water Cooling is optional)		Water Cooling
		room temperature≤25°C
	Dimension	210012001700 mm	270015002500 (mm)
	Power	10000VA	17000VA
	Data Process	RS232 Interface with software
