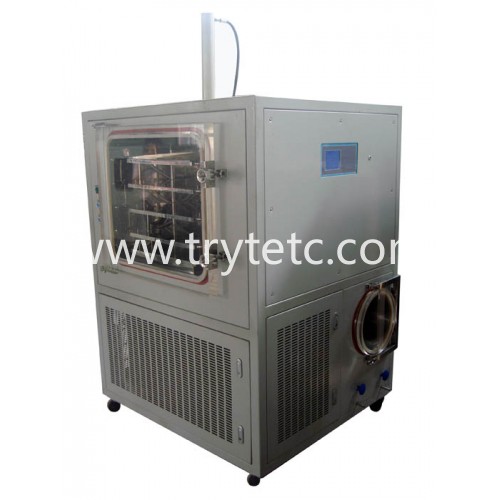

FD-100F Series Pilot In-situ Freeze Dryer, 15kg/24hours, 1 square meter, Silicone oil-heating
  • Name: FD-100F Series Pilot In-situ Freeze Dryer, 15kg/24hours, 1 square meter, Silicone oil-heating
  • Model : TR-100F Series
  • Erp code: 1000000089
    • | Share


Features:

  1. TR-100F freeze dryer, which the freeze-drying area is 1.0 and 2.0, square box structure, is suitable for freeze-dreyubg of lab samples for units production.

  2. TR-100F freeze dryer is that large-screen LCD display and the freeze-drying curve is programmable.

  3. TR-100F freeze dryer adopts double compressor, cold trap temperature is -70℃,samples may be pre-freezed and dried directly on the board

  4. TR-100F freeze dryer include two types: Regular and top-press.


Main characteristics:

  1. The process of pre-freezing and drying finishes in situ, the freeze dryer is equipped with observation windows and the drying process is intuitive.

  2. The temperature is less than or equal 1℃.The drying effect is uniform.

  3. The partition-board temperature is adjustable and controlled.

  4. The drying chamber and cold trap is separated so the water-capture capability is higher and the drying time is shorter.

  5. Touching-screen operation, PID controlling, display drying curve.

  6. The sample trap is square so it’s easy to clean and operate.

  7. Valve with nitrogen is optional.

  8. The drying chamber adopts transparent organic glass door the changing process of material is clear.

  9. The automatic top-press device and test device are optional.


Technical Parameters:

TR-100F Series

Specification

Unit

TR-100F-R Regular

TR-100F-TP Top-press

Drying chamber

Freeze-drying area

㎡

1.0

Layers of partition board

layer

6+1

4+1

Temperature scope of partition board

℃

-50~70

Partition board’s Temp. difference

℃

+/-1(balance)

Size of partition board

Mm

360*480*15

600*480*15

Partition board space

mm

70

100

φ22 Bottle

piece

2016

φ16Bottle

piece

3960

φ14 Bottle

piece

7200

Cold trap

Cold trap temperature

℃

<=-70

Water-capture capability

Kg/24h

15

Material

L

15

Electrici defrost

-

Yes

Basic parameters

Vacuum degree

Pa

<=10

Style of top-press

-

-

hydraulic pressure

Style of cooling

-

Cooling ventilation
room temperature<=25℃

Dimension

mm

1030*750*17000

1000*1200*(1700+600)




Technical Parameters:

TR-100F Series

Specification

Unit

TR-100F-R Regular

TR-100F-TP Top-press

Drying chamber

Freeze-drying area

㎡

1.0

Layers of partition board

layer

6+1

4+1

Temperature scope of partition board

℃

-50~70

Partition board’s Temp. difference

℃

+/-1(balance)

Size of partition board

Mm

360*480*15

600*480*15

Partition board space

mm

70

100

φ22 Bottle

piece

2016

φ16Bottle

piece

3960

φ14 Bottle

piece

7200

Cold trap

Cold trap temperature

℃

<=-70

Water-capture capability

Kg/24h

15

Material

L

15

Electrici defrost

-

Yes

Basic parameters

Vacuum degree

Pa

<=10

Style of top-press

-

-

hydraulic pressure

Style of cooling

-

Cooling ventilation
room temperature<=25℃

Dimension

mm

1030*750*17000

1000*1200*(1700+600)
