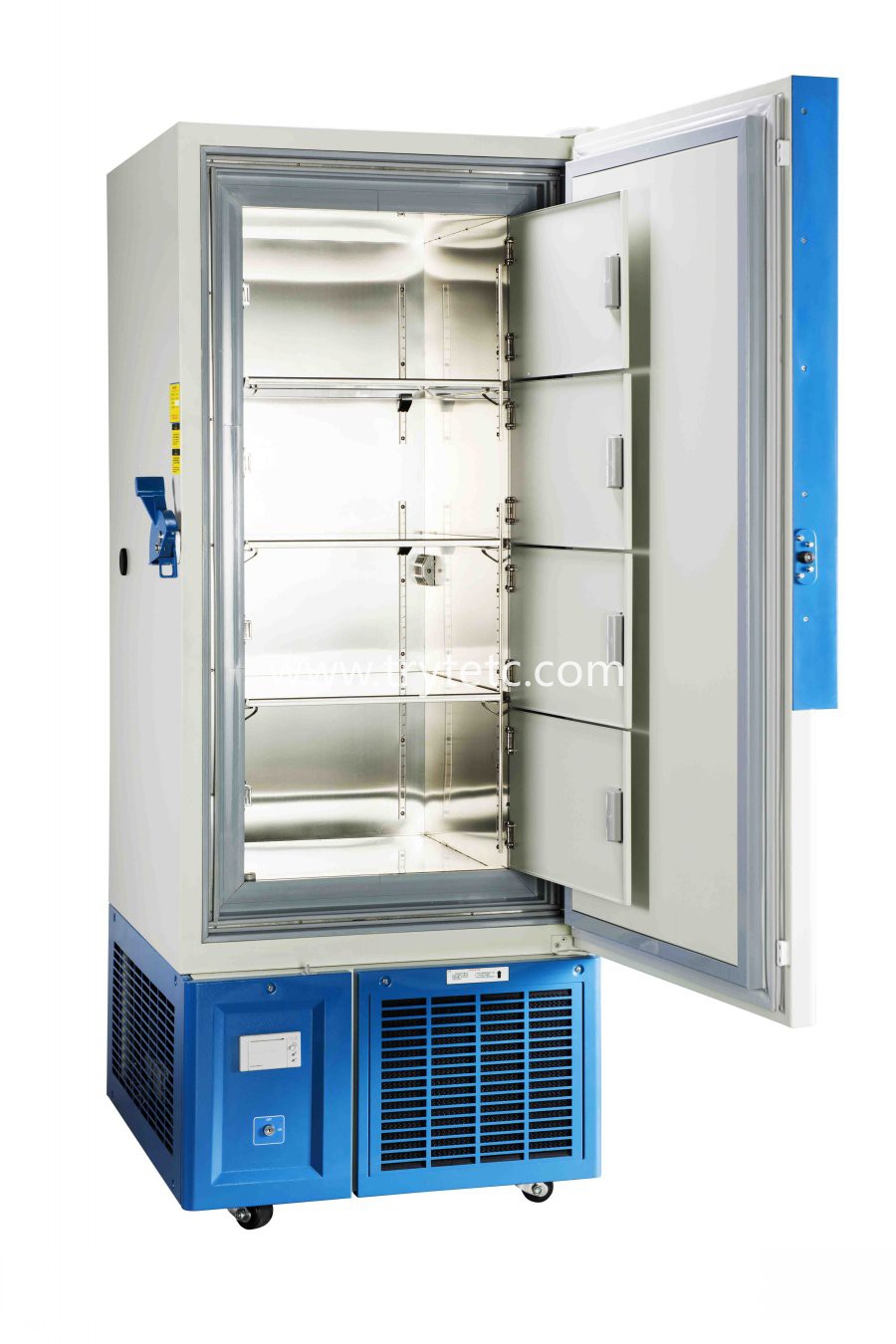

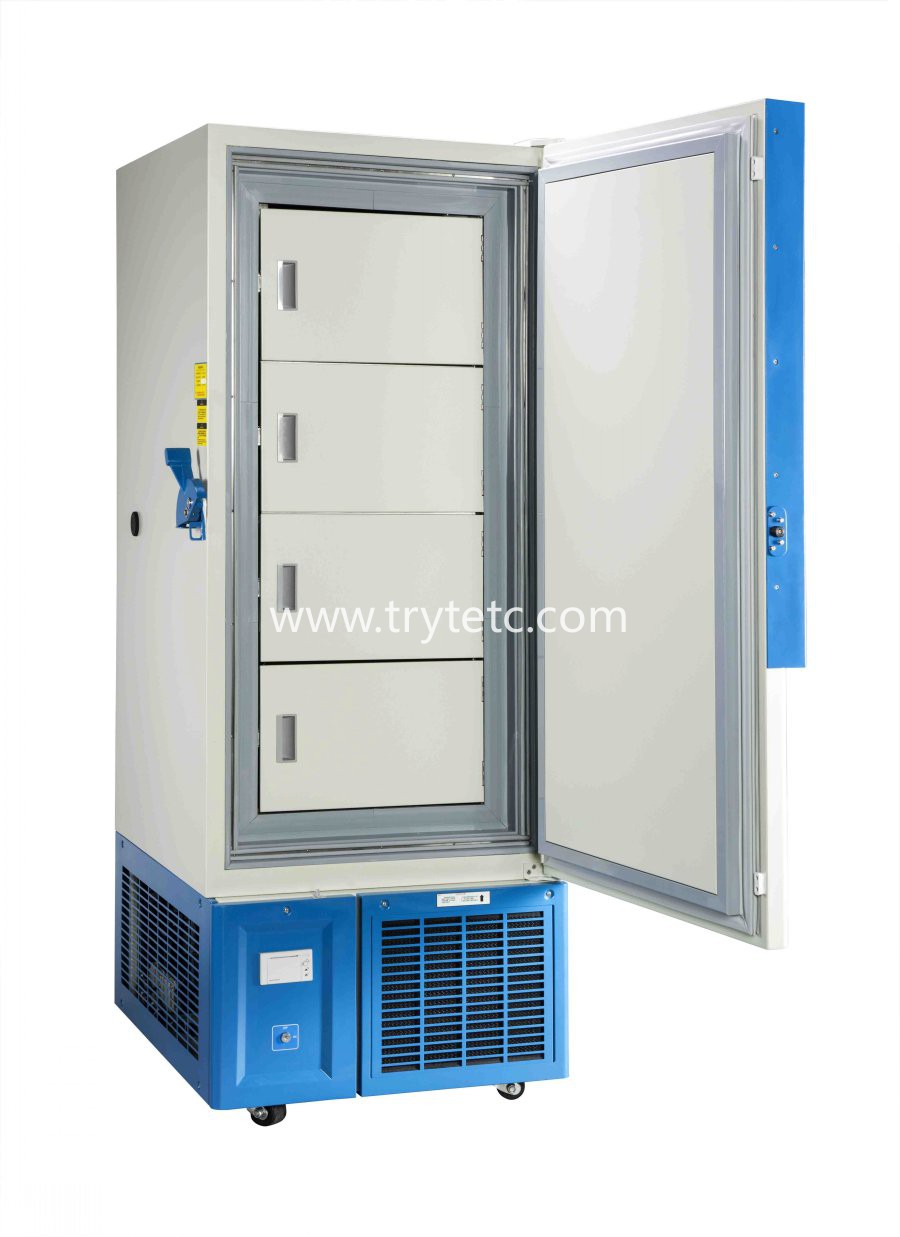

TR-GL100/218 -10~-65℃ Upright Freezer Series


COMPANY : Tryte Technology (H.K.) Limited
ADD : UNIT 04, 7/F, BRIGHT WAY TOWER, NO. 33 MONG KOK ROAD, KOWLOON, HONGKONG.
TEL:00852-2389298
FAX: 00852-35902333
CELL:0086-15367067787(Robin)
SITE : www.trytetc.com
SKYPE : live:myformat666
EMAIL : sale@trytetc.com
more>>>

  • Name: TR-GL100/218 -10~-65℃ Upright Freezer Series
  • Model : TR-GL100/218
  • Erp code: 1000000069
  • | Share


Key point:

New touch screen controller with USB store,,
RS232 remote alarm system,,
safety supplement system(CO2 BACK UP),,
Visual and audible alarm system,
Remote mobile control system,

-10~-65℃       Upright Freezer Series
                         Model: TR-GL100/218/328/388/538/668/768/828

   The Ultra-low Temperature Freezer offers a wide variety of research and storage applications,such as low temperature scientific experiments,preservation of plasma,biomaterial,tunny, biological product,and testing low-temperature-resistant properties of military product.It is suitable for blood bank,hospitals,sanitation and antiepidemic,sanitation,research institutes,electronic industries,university laboratories,military in dustries,pelagic fishery companies.

Control System:

Microprocessor-based temperature controller,  -10℃~-65℃ can be set freely , controlling precision is 1℃, Digital temperature display.
Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated
Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.
Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.


Structure Design:

Upright type , Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing
Front opening lockable door with full height handle, with Vacuum release port
Adjustable 2-3 stainless steel shelves with inner door, double silicon gasket seal.
Two-times foaming technology. 100-155mm foaming insulation , with VIP+.
With temperature printer, record 7days data. 72 hours battery back up for printer and controller display.
Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.
Refrigeration System:
Imported Danfoss compressor, Tow units compressors in parallel connection, to reduce noise and improve the cooling temperature come to -65℃ steady.
Fan electromotor with internationally famous of Germany EBM
Unique refrigeration circulation and unipolar compressor oil-lubricated technology
China Patent technology of mixture refrigerant, which composed of  R134a,R404a,R23,R410A,N2 and so on, CFC free
Certificate: ISO9001, ISO14001,ISO13485

Specs list:
ModelCapacityExternal size.
(WxDxH) mm
Inside size
(WxDxH) mm
Input powerWeight
(N.t / G.t)
TR-GL100100 liters720x793x1000450*450*500800W120/140KG
TR-GL218218 liters940x840x1552582x470x7681000W225/250KG
TR-GL328328 liters940x840x1999580x450x12001500W320/350KG
TR-GL388388 liters940x840x1999740x450x12001800W330/360KG
TR-GL538538 liters940x840x1999662x600x13302000W360/380KG
TR-GL668668 liters996x1075x1997815x667x12002700W400/420KG
TR-GL758      758liters996x1190x1997930x665x12002700W420/450KG
TR-GL828        828liters996x1230x2056930x710x13083200W430/460KG


Model:TR-GL100/218/328/388/538/668/768/828

External size(W*D*H)mm:940x840x1999

Capacity(Liter):100

Input Power/Average Power(W):800-3200

Temperature(℃):-10°C~-65°C

Weight(kg):120

Key point: New touch screen controller with USB store,,   RS232 remote alarm system,,   safety supplement system(CO2 BACK UP),,    Visual and audible alarm system,    Remote mobile control system,
