Key Point:

Notebook Table design
Touch screen controller with USB
Password lock design
Chart recorder
Remote mobile alarm system
New bigger door handle design

Control System:
Microprocessor-based temperature controller,  -10℃~-86℃ can be set freely , controlling precision is 1℃, Digital temperature display.
Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated.
Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.
Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.

Structure Design:

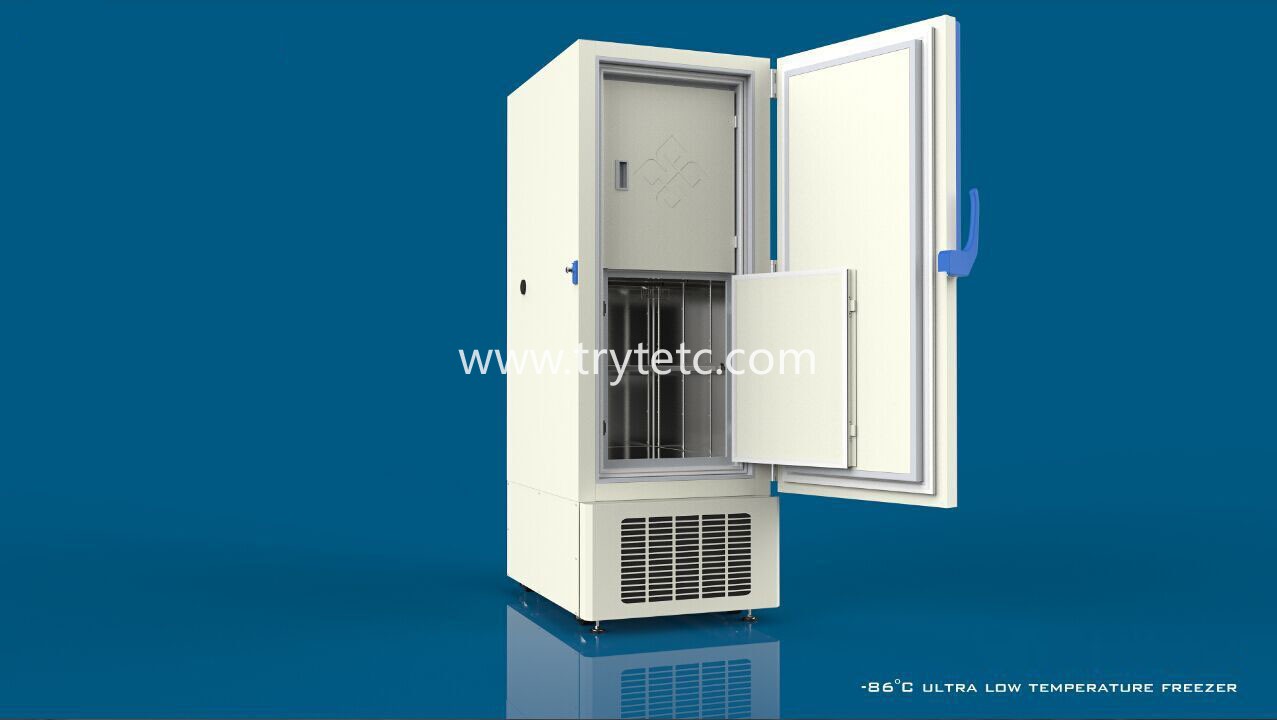

Upright type , Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing
Front opening lockable door with full height handle, with Vacuum release port
Adjustable 2-3 stainless steel shelves with inner door, double silicon gasket seal.
Two-times foaming technology. 90-155mm foaming insulation , with VIP+.
With temperature printer, record 7days data. 72 hour battery back up for printer and controller display.
Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:
Imported Danfoss compressor, 2 units compressors in parallel connection, to reduce noise and improve the cooling temperature come to -86℃ steady.
Fan electromotor with internationally famous of Germany EBM
China Patent technology of mixture refrigerant, CFC free
Certificate: ISO9001, ISO14001,ISO13485, CE, TUV

  Specs list:

Model：TR-HL218/328/388/538/668/768/828

External size(W*D*H)mm：840*940*2000

Capacity(Liter)：218

Input Power/Average Power（W）：800-3200

Temperature（℃）：-10°C~-86°C

Weight（kg）：120

Key Point: Notebook Table design Touch screen controller with USB Password lock design  Chart recorder Remote mobile alarm system New bigger door handle design
