Equipment introduction

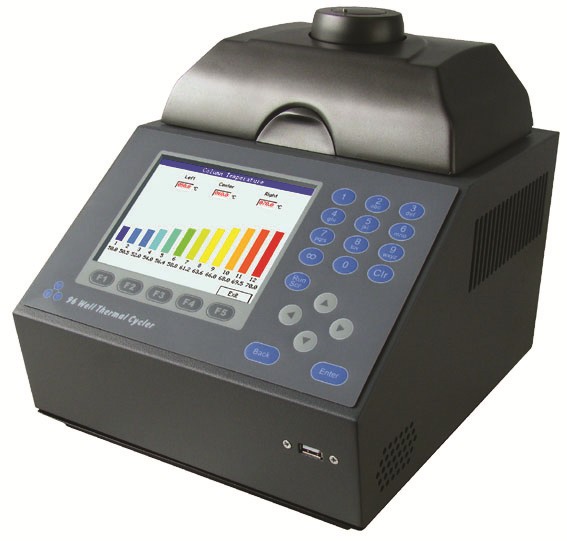

TR-96G is a premium product for PCR with a big color display. It has good thermal cycle
function. Gray96G is equipped with a semiconductor cooler which is a base of heating and
cooling system, with improved functions and stabilization, at the same time big display and
curve programming interface were added Friendly user interface and extension functions of
USB flash provide quicker, more practical and strong thermal cycle.
Main features
It uses imported semiconductor chip, operation life is guaranteed, our company provides free service
for 3 years.
New 5.7 inch color liquid crystal screen, curve graphic display program
A pressure corresponds to the thermal cover, that provides safety for PCR tubes.
The newest USB port, with USB flash you can unlimited download programs.
The speed of changing temperature is very fast, that saves experimental time.
The temperature is equality, that provides the best result of your experiment.
Specifications
| Model | TR-96G |
|
|
| Block capacity | 96*0.2ml+77*0.5ml |
|
|
| Heating-cooling system | The newest semiconductor technology |
Applicable material
| 0.2mlPCR tube,0.5mlPCR,discharge tube ,96 wells, original load disk |
|
|
| LCD display | 5.7"TFTColor display，curve graphic display program |
| USB functions | Unlimited downloading |
| Communication port | USB2.0 and RS232 |
| Original functions | You can buy a set of original load disk.
|
|
|
| Temperature function |
| Block temp range | 0℃-100℃ |
| Max heating rate | 4℃/sec |
| Max cooling rate | 4℃/sec |
| Block uniformity | ≤±0.2℃(needs 30 sec for getting setting temperature) |
| Block accuracy | ≤±0.2℃ （30℃-100℃） |
| Block resolution | 0.1℃ |
| Temp controlling | Simulate tube + Block |
Adjuster of speed of changing temperature Available |
|
Gradient function |
| Gradient Temp accuracy | ≤±0.3℃（30℃-99.9℃） |
|
| Gradient Temp uniformity | ≤±0.3℃（needs 30 sec for getting setting temperature） |
|
| Gradient range | 30℃~99.9℃ |
|
| Temp range | ≤30℃ |
|
|
| Gradient Temp point distribution | 12 |
|
|
Programming function |
| Programming storage | Internal storage includes 120 programs , you can download unlimited programs through USB |
| Max volume of series | 40, and you can make multinested loop |
| Max volume of loops | 100 standert loops（there are can be 60000 nested loop） |
| Time increment/decrease | 1-120 sec，you can also make a Long PCR experiment |
| Temp increment/decrease | 0.1-10.0℃，you can also make a Touchdow n PCR experiment |
| Auto pause | Available |
| Power-off protection | Available |
| 4℃ heat preservation | heat preservation time is unlimited |
| Status display | Available |
| Real-time clock | Recording of program modificatio n and working time |
| Thermal cover function |
| Thermal cover height | Unlimited regulation, a pressure corresponds to various kind s of PCR tubes and load disks |
| Thermal cover temperature | 30℃-105℃ is available |
| Auto switching off function | It automatically switches off when the temperature goes down till 30℃ |
| Other specifications |
| Voltage range | multiple power source（85-265V，47-66Hz） |
| Power | 200-600W |
| Size（L*W*H） | 303*243*273mm |
| Net weight | 10kgs |
|
|
|
|
|
|
