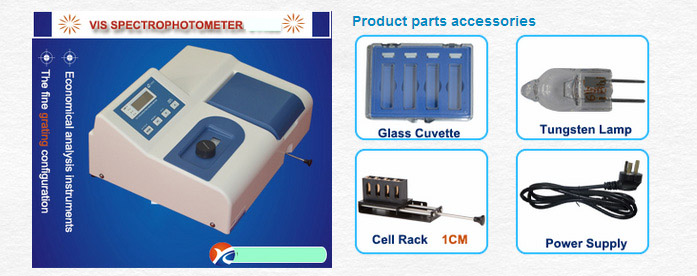

Product Description:

This product is an economic analysis instruments, with RS232 output. Excellent photometric precision instruments higher than the same file. Widely used in medical testing, food, petrochemical industry, environmental protection and monitoring, and other fields.

Features:

RS232C interface is optional 100mm colorimetric stand (suitable for power plants, waterworks and sugar refiner, etc) Digital display the measuring value; Auto light door and zero setting. The instrument adopts imported tungsten lamp, ensure its service life.

Technical parameters:

Model: TR-TC-V1000

Optical system: Czerny-turner CT grating monochromator, 1200/mm

Wavelength range: 350-1020 nm

Wavelength accuracy: +/- 3 nm

Wavelength repeatability: ≤1nm

Measurement range: 0-199.0%T, 0-1.999A, 0-1999C

Photometric accuracy: +/- 1.0%T

Photometric repeatability: 0.5%T

Spectral bandwidth: 6 nm

Measuring optical path: 100 mm

Stray light: <= 1.0%T (340 nm)

Stability: <= 0.004 A/h(500 nm preheat 1 hour)

Display modes: 4 LCD

Basic Measurement: T,A,C

Data output (print): RS232C

Light source: 6V10W

Operating voltage: 220V/110VAC,50-60Hz

Technical parameters

Model: TR-TC-V1000

Optical system: Czerny-turner CT grating monochromator, 1200/mm

Wavelength range: 350-1020 nm

Wavelength accuracy: +/- 3 nm

Wavelength repeatability: ≤1nm

Measurement range: 0-199.0%T, 0-1.999A, 0-1999C

Photometric accuracy: +/- 1.0%T

Photometric repeatability: 0.5%T

Spectral bandwidth: 6 nm

Measuring optical path: 100 mm

Stray light: <= 1.0%T (340 nm)

Stability: <= 0.004 A/h(500 nm preheat 1 hour)

Display modes: 4 LCD

Basic Measurement: T,A,C

Data output (print): RS232C

Light source: 6V10W

Operating voltage: 220V/110VAC,50-60Hz
