Product Description：

New UV-Vis spectrophotometer with extremely good optical system Design of optical system, High standards of mechanical systems, Advanced circuit control system, Stringent and demanding processing requirements and design of a new series of UV - Vis spectrophotometer . With a friendly and intuitive graphical interface software UV-SUPER2.0 , Excellent and reliable stability and technical characteristics . can meet user’s requirements of high level professional analysis work.

Features：

1. Friendly, convenient and intuitive graphical user interface , Instruments use 9 - inch high resolution color LCD touch-controlled screen, configured with new UV-SUPER2.0 software , easy to operate ,, Advanced functionality .

2. Instrument has excellent performance and outstanding stability

◇The entire seal structure of monochrome structure, as well as all opticalmirror surface is coated with sio2 protective film, double protection guarantee optical parts from the effects of the gas and the environment.

◇Tungsten lamp ( Philips ), deuterium lamp ( Hamamatsu ) selected from well-known brands in the world to ensure the long-term stability of the light.

◇New and improved transmission mechanism, make the wavelength accuracy and repeatability better .

◇New SUPER series UV - Vis spectrophotometer Designed with superior materials, while manufacturing process rigorous New design of advanced electrical systems

◇Instrument using the most advanced 32 - bit microcontroller (nxp ds-lpc3250 ) of nxp Company, equipment run faster ( up to 266 Mhz ), stable performance.

◇ Instruments used in the American BB company 64 - bit high - performance AD designed for optical data acquisition and processing.

◇Instruments to support inside the instrument of mass data storage ( up to 32m ),supports Mouse operation, support for large - capacity SD card storage.

3. Equipment maintenance is simple and convenient.

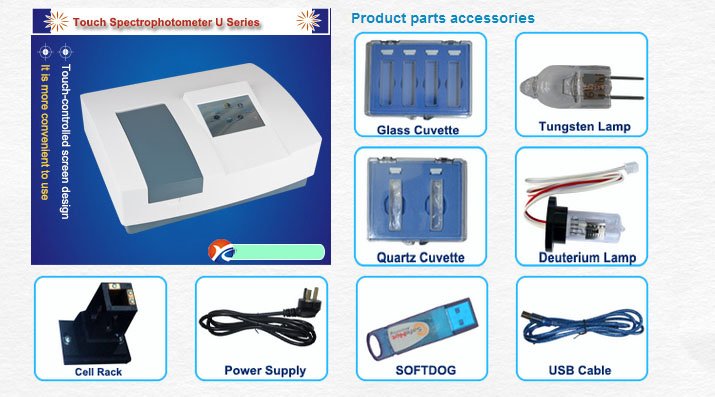

◇Unique socket - type tungsten lamp and deuterium lamp, more convenient for changing light from optical debugging, equipment debugging and maintenance .

◇Design of optical and electrical double layer separately to avoid cross effect, instrument maintenance convenient and reliable.

Technical parameters：

Technical parameters
