TR-TC-752N UV-VIS Spectrophotometer, 195-1020nm, 4nm
  • Name: TR-TC-752N UV-VIS Spectrophotometer, 195-1020nm, 4nm
  • Model : TR-TC-752N
  • Erp code: 9000000173
    • | Share

TR-TC-752N .jpg

Product Description:

This instrument can be widely used in medicine, clinical examination, biochemistry, petrochemical, environmental protection, quality control and judicial criminal investigation, the inspection and quarantine forestry, geological prospecting, food testing and other industries, is one of the commonly used analytical instruments in physical &chemical laboratory .

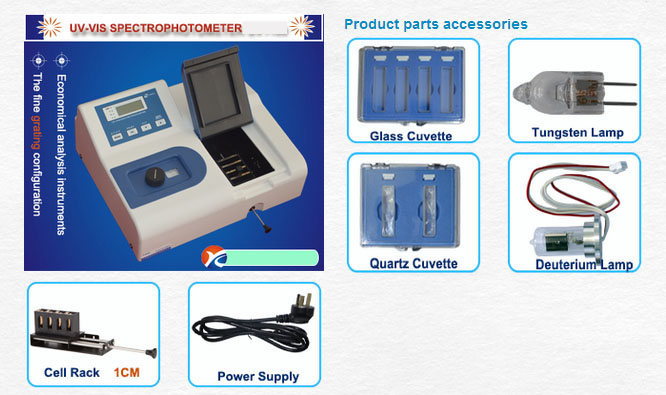

 333 拷贝.jpg

Technical Parameters:

Model

 TR-TC-752

 TR-TC-752N

 TR-TC-752A

Optical system:

CT grating monochromator

CT grating monochromator

CT grating monochromator

Wavelength range:

195 nm- 1020nm

195 nm- 1020nm

195 nm- 1020nm

Wavelength accuracy:

+/- 2 nm

+/- 2 nm

+/- 2 nm

Spectral bandwidth

5 nm

4 nm

4 nm

Wavelength repeatability:

1 nm

1 nm

1 nm

Stray light:

<= 0.3%T @220nm

<=0.3%T @360 nm

<=0.3%T @360 nm

Photometric accuracy:

+/- 0.5%T

+/- 0.5%T

+/- 0.5%T

Photometric repeatability:

0.2%T

0.2%T

0.2%T

Stability:

+/- 0.004 A/h @500nm

+/- 0.004 A/h @500nm

+/- 0.004 A/h @500nm

Work Pattern:

T, A, C

T, A, C

T, A, C

Display area:

0-200%T, -0.3-3A

0-200%T, -0.3-3A

0-200%T, -0.3-3A

Display modes:

4 LCD

4LCD

4LCD

Zero setting

automatic

Automatic

Automatic

Weight:

12 kg

12 kg

12 kg

Output Mode:

Dedicated Printer (optional)

Dedicated Printer (optional)

Dedicated Printer (optional)

Light source:

Imported Philip tungsten lamp, Deuterium Lamp

Imported phlip tungsten lamp, Deuterium Lamp

Imported phlip tungsten lamp, Deuterium Lamp

Switch Light

Manual

Manual

Automatic









Accessories:

Model

 TR-TC-752

 TR-TC-752N

 TR-TC-752A

Host

Standard accessories

Standard accessories

Standard accessories

Power line

Standard accessories

Standard accessories





Technical Parameters:

Model

 TR-TC-752

 TR-TC-752N

 TR-TC-752A

Optical system:

CT grating monochromator

CT grating monochromator

CT grating monochromator

Wavelength range:

195 nm- 1020nm

195 nm- 1020nm

195 nm- 1020nm

Wavelength accuracy:

+/- 2 nm

+/- 2 nm

+/- 2 nm

Spectral bandwidth

5 nm

4 nm

4 nm

Wavelength repeatability:

1 nm

1 nm

1 nm

Stray light:

<= 0.3%T @220nm

<=0.3%T @360 nm

<=0.3%T @360 nm

Photometric accuracy:

+/- 0.5%T

+/- 0.5%T

+/- 0.5%T

Photometric repeatability:

0.2%T

0.2%T

0.2%T

Stability:

+/- 0.004 A/h @500nm

+/- 0.004 A/h @500nm

+/- 0.004 A/h @500nm

Work Pattern:

T, A, C

T, A, C

T, A, C

Display area:

0-200%T, -0.3-3A

0-200%T, -0.3-3A

0-200%T, -0.3-3A

Display modes:

4 LCD

4LCD

4LCD

Zero setting

automatic

Automatic

Automatic

Weight:

12 kg

12 kg

12 kg

Output Mode:

Dedicated Printer (optional)

Dedicated Printer (optional)

Dedicated Printer (optional)

Light source:

Imported Philip tungsten lamp, Deuterium Lamp

Imported phlip tungsten lamp, Deuterium Lamp

Imported phlip tungsten lamp, Deuterium Lamp

Switch Light

Manual

Manual

Automatic










Accessories:

Model

 TR-TC-752

 TR-TC-752N

 TR-TC-752A

Host

Standard accessories

Standard accessories

Standard accessories

Power line

Standard accessories

Standard accessories
