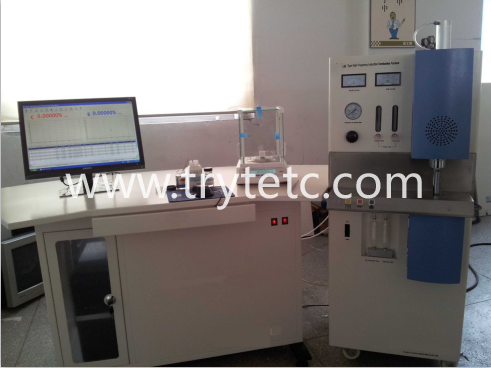

Infrared Carbon & Sulfur Analyzer | Circuit: dual-CPU design, highly integrated electronic circuit, stable and reliable; adopting multi-level shielded isolation circuit for optical fiber transmission to avoid high-frequency interference.
Power supply: Industrial integrated linear power module with stable output and no malfunction.
Light source: new and specially-made platinum infrared light source, with continuous heating and high-efficiency of spectral characteristics.
Analysis cell: gold-plated carbon and sulfur analysis cell and high-precision pyroelectric infrared detector and high-performance amplifying circuit to ensure detecting sensitivity and stability. |

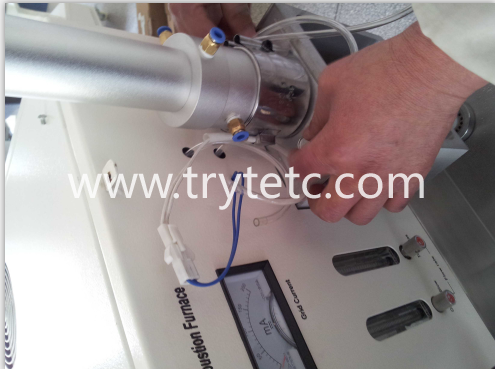

High-frequency Furnace | High-frequency circuit: high-power high-frequency circuit and ceramic vacuum capacitor that can burn without samples to reduce the load on high-frequency combustion system and extend its service life.
Controlling circuit: automatically-detect electromagnetic valve, lift cylinder, and high -frequency condition.
Safety system: automatically trigger alarm of exceeding time and over-current and ensure high-frequency furnace work normally
Gas circuit structure: imported gas circuit system (electromagnetic valve, pipe fitting, lift cylinder), automatic leak detection.
Dedusting system: automatic cleaning device and patented ash removal system, internal pressure seal for dedusting with good sealing and easy replacement
Furnace structure: low-pressure heating, constant-temperature, to improve the conversion rate of sulfur and ensure the stability of sulfur analysis result. |
Software | Analysis channel: channel management, carbon and sulfur channels are free to add, delete and edit, without quantitative restrictions.
Sample management: sample name and logo can be edited, and users are free to add or delete sample name;
Display: each curve frame for carbon and sulfur to dynamically display real-time data and carbon, sulfur release curves during the analysis process
Data processing functions: using ACCESS database to save the analysis results, all the analysis data and curves can be saved.
Inquiry function: users can get access to analysis results based on time, operator, sample name or logos;
Software function: curve/data storage, empty net, parameter setting, channel selection, statistics, result correction and curve comparison, etc.
Printing: various printing modes, laboratory and testing station, and can freely set printing formats.
Self-diagnosis function: system diagnosis, furnace detection and gas room sealing check
|
