Specifications：
Model | TR-2308A | TR-2308C |
Measurement range | Dry way:1-2000μm Wet way:0.05-2000μm | Dry way:1-1200μm Wet way:0.1-1200μm |
Number of channels | Dry way:100 Wet way:136 | Dry way:98 Wet way:115 |
Dispersing | Dry samples：turbulent flow dispersing、normal shock wave dispersing Wet samples：ultrasonic dispersing and mechanical stirring |
Execution standard | ISO13320，GB/T19077.1-2008，Q/JW001-2006 |
Sample dispersing | Ultrasonic time: 1-4mins Stirring rate: 0-500rpm |
Accuracy error | <3%( standard reference material) |
reproducibility | <3%( standard reference material) |
Dispersing methods | Circulation | Ratedflow:17L/min Rated power:15W |
ultrasonic | Frequency: 40KHz, Power: 50W, Time: 0-10min |
stirring | 0-300rpm |
Circulation | 8L/min, 10W |
Sample chamber | 500ml |
Micro sample chamber | 10ml (optional) |
Operating mold | Full-automatic |
Operating time | <3mins each operation |
Laser | He-Ne λ=632.8nm, power>2mW |
Power Source | ac 220/110v 50/60hz |
Dimension | 920mm×440mm×500mm |
Weight | 70kg |
Shipping package：
Name | Quantity |

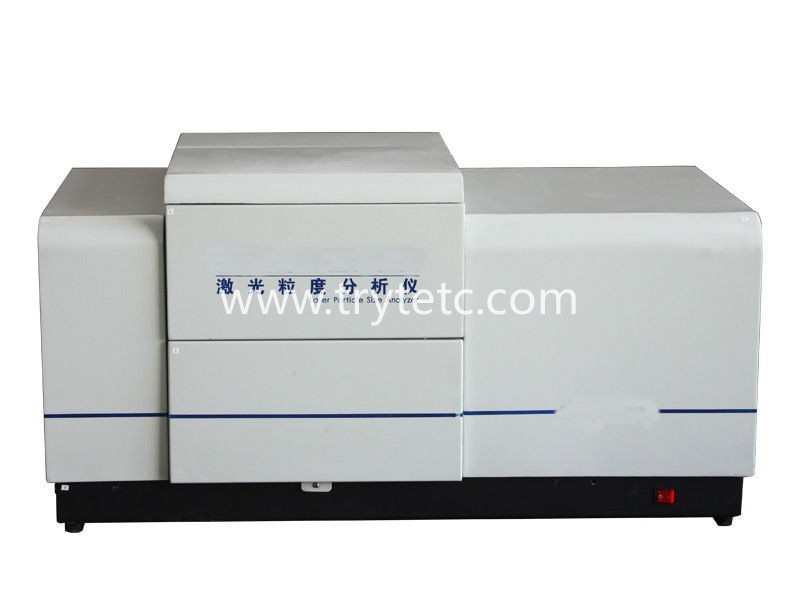

TR-2308 Laser particle analyzer | 1 |
Laser particle analyzer software （including Encryption dog） | 1 |
Vacuum hover | 1 |
Oil-free air compressor | 1 |
Standard Reference material for measurements performed on dry samples | 1 pouch |
Standard Reference material | 2 bottles |
Gears | 1 set |
Signal cable | 2 |
Power cable | 2 |
USB conversion line | 2 |
Application:
For measurements performed on cements, ceramics ,drugs, coatings, dyes, paints, fillers, chemicals, catalysts, abrasives, lubricants, coal powder, muds and sands, dusts, cells, bacteria, foods, additives, pesticides, explosives, graphite, photosensitive materials, fuels, metal and non-metal powders, calcium carbonate, kaolinite, water and coal slurry, and other powdery materials, particularly the particles reacting with the solvents or changing their shapes/sizes once diluted in the solvents, such as medicines and magnetic materials.
