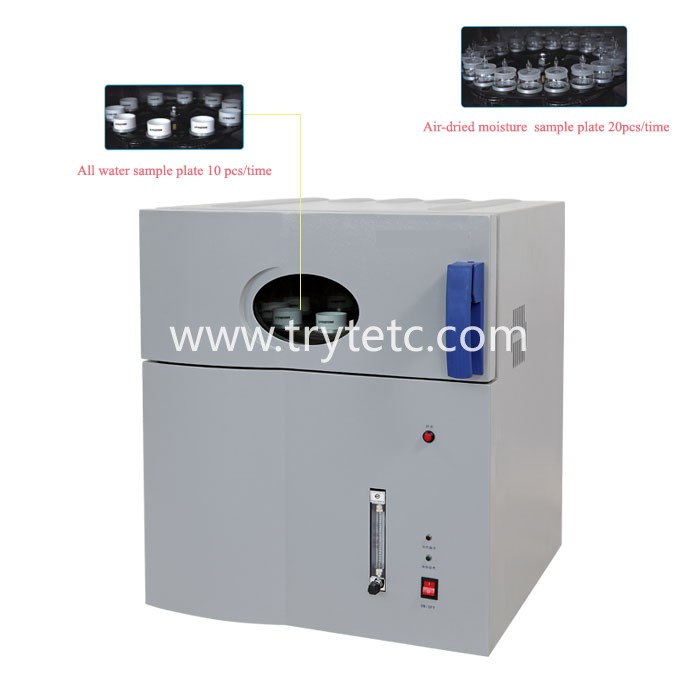

Application area:

Used in power plant, coal mine, the commodity inspection, environmental protection, chemical industry, scientific research, education and other departments determine the total moisture materials such as coal, coke, and internal moisture.

Technical Parameters:

Coal samples quality: all water 10 g ~ 12 g (granularity < 6 mm) ; air-dried basis                         moisture 0.9 g to 1.1 g(granularity <0.2 mm)

Number of tests: all moisture / 20 times, air dried basis moisture / 20 times
Test time: according to national standard, can also be constant weight, about 20               min~ 40 min
Temperature control precision: ±2.5 ℃
Working power supply: AC220V±22V/50Hz
power: ≤1.6kW
Host size: 580 mm * 650 mm * 660 mm
Host weight: 75 kg

Technical Characteristics:

1.Automatic control by computer, automatic identification of water drying. The      automatic calculation, save, print. Built in precision electronic balance,  weighing stable and reliable;

2.Irrespective of the test analysis based water or water, one can test up to 20    samples, is the domestic counterparts of similar instruments record holder;

3. The light wave heating, drying, temperature uniformity, control when the  optional module is convenient for the user to check dry;

4. The standard test time, in full compliance with the arbitration law, the    arbitration result can be used for legal;

5. With nitrogen experiment, with domestic counterparts minimum nitrogen through  experimental space, greatly saving nitrogen usage, the of all kinds of coal.

6. Stainless steel liner, reflective, more uniform heating;

7. The size of the observation window, can clear abnormal experimental  observations;

8. No microwave leakage and radiation problems, health and safety;

9. Use of advanced USB, plug and play, reduce the requirement of computer, by a    microcomputer control multiple moisture meter and other instruments comprehensive  test instrument, the realization of a computer controlled;

10. Network to realize remote data sharing.
