  • Name: TR Series Drying Oven
  • Model : TR-HG6310
  • Erp code: 2000000039
  • | Share

TR series Drying Oven is used for drying, baking and sterilizing of samples in the laboratory . These drying ovens are suitable for use in industry, colleges, research institutes, inspection company, hospital laboratories and coal mines.


DHG 拷贝.jpg

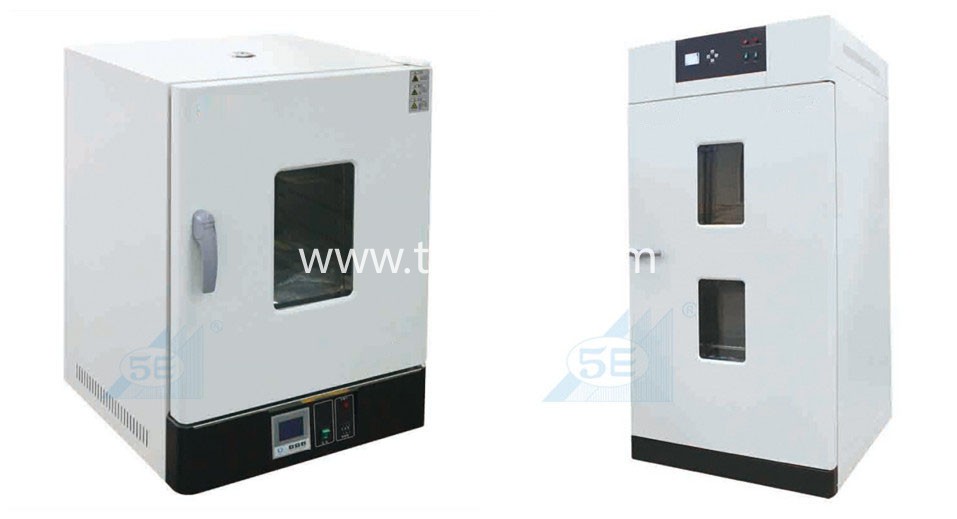

                            TR-HG6310 Drying Oven                                        TR-HG6320 Drying Oven


Standard Configuration :
Shelves: 2  layers


Optional Configuration:

1.Shelves for TR-HG6090:Up to 5 layers
2.Shelves for TR-HG6310/TR-HG6320: Up to 5 layers

Features:
1. Vertical type chamber made of stainless steel, is equipped with toughened glass observation window and O-ring between chamber and oven door to ensure airproof and heat insulation.
2. Equipped with low noise motor and electric heater to uniform the heat, keep constant temperature in all zones of chamber.
3. Equipped with a smart temperature controller (PID technology) to achieve rapid response and high precision and less error. The set and actual temperatures for the oven are displayed.
4. Up to three settable modes of heating time and temperature can be saved on the program of 5E-MHG6090.


5E-MHG6090-Drying-Oven 拷贝.jpg

TR-HG6090 Drying Oven



MODELTR-HG6310TR-HG6320TR-HG6090
Internal Capacity120L627L91L
Temp.Range(Ambient temp.+10)-250℃(Ambient temp.+10)-250℃(Ambient temp.+10)-200℃
Temp.Control Recision±1℃±1℃±1℃
Chamber Size500mm×450mm×550mm660mm×760mm×1250mm450mm×450mm×450mm
Power SupplySingle phase, AC380V±10%, 50/60Hz, 2kW3 phases, AC380V±10%, 50/60Hz, 6kWSingle phase, AC220V±10%, 50/60Hz, 1.1kW
Net Weight56kg160kg70kg
Nitrogen Boxavailableavailableavailable
Dimensions(L×W×H)636mm×680mm×915mm890mm×925mm×1830mm600mm×590mm×875mm
