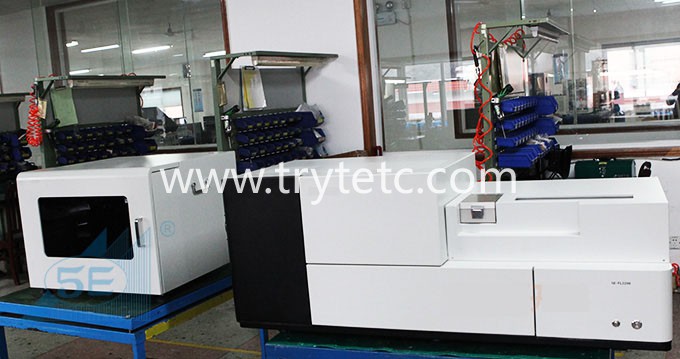

TR Series Fluorine/Chlorine Analyzer
  • Name: TR Series Fluorine/Chlorine Analyzer
  • Model : TR-CLT2310
  • Erp code: 2000000028
    • | Share

TR Series Fluorine/Chlorine Analyzer is used to determine the fluorine and chlorine in coal or other combustibles by combustion  hydrolysis method(Ion selective electrode method for F and Potentiometric titration method for CI), which is widely applied in coal-fired plants, coal mines, steel plants, petrochemical industry, etc.



Features
High Automation
Automatic analysis process and quick analysis results available after sample loading.
High Efficiency
Two sample analyses for each batch and continuous analysis available.
High safety Assurance
Unattended operation with the protection of lack or overflow of water level
Flexible Layout
No water tap is required around the instrument as it is equipped with water tank.






ModelTR-CLT2310
Conforms to Method

Fluorine:GB/T 4633; ASTM D5987; ISO587;AS 1038.10.4

Chlorine:GB/T 3558;ASTM D6721;ISO11724;SN/T3596

Measuring RangeFluorine:10-2000ug/g              Chlorine:0.003-0.4%
Sample Mass0.5 g
High Temperature Furnace Precision1100 ±10℃
Analysis Time1. Decomposition35 mins
2.Calibration of electrode parametersavailable to calibrate when decomposing the first batch of samples and not calculated to total analysis time
3. TitrationFluorine:15mins       Chlorine:15mins

For dual sample analysis: 65 min ; For continuous analysis: 17.5 min/ sample (average)

Sensitivity of Electrode Potential0.1mV
Minimum Filling of Injection Pump50 uL
AccuracyWithin uncertainty range of standard sample
Repeatability

15ug/g(Fad≤150ug/g), 10%(Fad＞150ug/g), 0.010% (CLad)

Power SupplySingle phase, AC220±10%, 50/60 Hz, ≤3.5 kW
Net Weight130kg, Reservoir:30kg
Dimension (L× W × H)

Analysis Unit:1400 mm x 600 mm x 610 mm,

Reservoir:900 mm x 500 mm x 510 mm
