TR-IRSII Automatic Infrared Sulfur Analyzer
  • Name: TR-IRSII Automatic Infrared Sulfur Analyzer
  • Model : TR-IRSII
  • Erp code: 2000000019
    • | Share

The TR-IRSⅡ Infrared Sulfur Analyzer is used to determine the total sulfur content by infrared absorption,which is widely applied in power plants, coal mines, metallurgy,chemical industry ,commercial inspection,scientific research,ets.



Standard Configuration

1.Computer  2.Printer  3.Main analyzer   4.A/C adapter  5.H2O sorb reagent   6.Silica wool   7.Crucibles  8.Outer combustion tube   9.Inner combustion tube  10.Boat stop   11.O-ring kit  12.Tool kit

Features
Stability and Accuracy
1. Top quality ultra-low drift infrared cell to ensure stability, precision and accuracy.
2. Reliable single Si-C spiral tube heating components.
3. Unique gas tightness structure to avoid the effect of SO2 in air.

Easy Operation
1. The sample mass can be automatically sent to the computer by balance connection.
2. Upgraded gas circuit design and reliable components to minimize the maintenance work.
3. Unique “Quick Start” Button to simplify the operation.

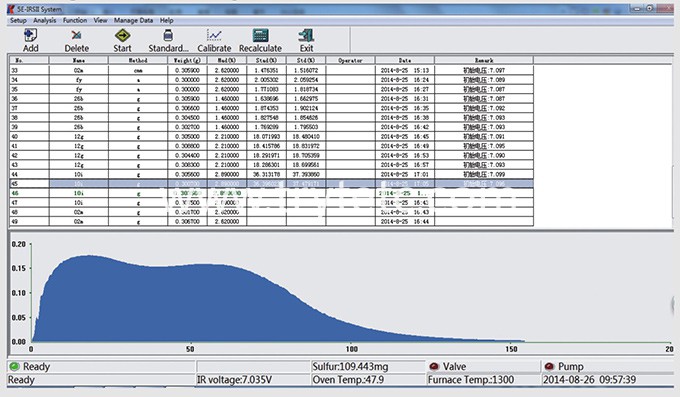

Intelligent Software Systems




MODELTR-IRSII Automatic Infrared Sulfur Analyzer
Conforms to MethodASTM D4239, ISO19579 and GB/T25214
Max. Sample loading1 sample per batch manually
Analysis MethodInfrared absorption
Analysis Resolution0.001%
Sulfur Range0.01%-30% Customized range available
Analysis Time per Sample≤120s
Analysis Temp.1350°c
Temp.Control Precision±1°c
Sample Mass200mg-400mg (300mg is recommended)
Power SupplySingle phases, AC220±10%, 50/60Hz, ≤4KW
Net Weight60kg
Dimensions(L×W×H)510mm×700mm×620mm
