TR-DC5015 Calorimeter
  • Name: TR-DC5015 Calorimeter
  • Model : TR-DC5015
  • Erp code: 2000000006
    • | Share

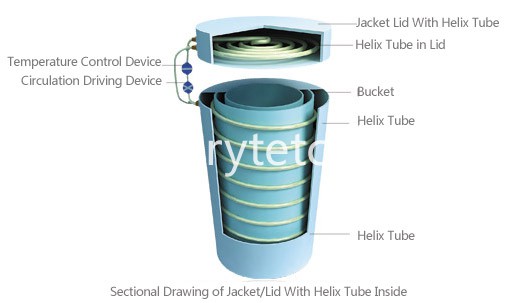

Internal stabilityInternal stability is secured with the aid of temperature control device and a helix tube within both the lid and the bucket wall. These enable the system with constant water temperature even if the ambient temperature fluctuates by 10℃ in the single period of testing.		TR-DC5015-2.jpg

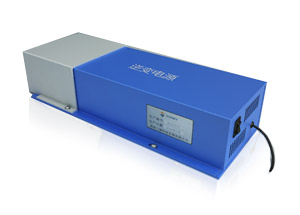

Power supply stabilityUnique design of inverter which can purify and stabilize the power supply, ensures the calorimeter will not be affected by the fluctuation of power voltage (from 160V to 240V) and frequency.

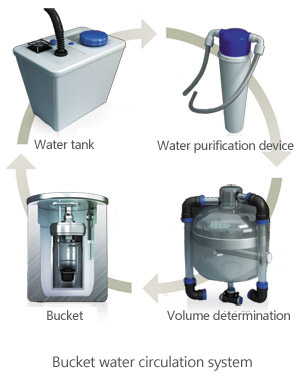

TR-DC5015-3.jpgIndependent bucket and jacket water systemBucket water will be drained to water tank directly after finishing the test, so the inlet and outlet of bucket water will not affect the jacket water.Constant bucket water volume and temperatureConstant volumetric tank with temperature controlling device enables a high level of uniformity on both water volume and temperature for each test.High temperature resolutionTemperature control utilizes a PT1000 Platinum resistance probe for temperature resolution to the nearest 0.0001k.Stable and reliable water qualityEquipped with high quality water purification device, the water quality of each test is guaranteed.







Test Turn OverDue to the nature of this water calorimeter, there is no cool down or prepping time in between tests. And with bomb identifier, up to four bombs can be recognized. So, as soon as one test is completed the bomb can be replaced immediately with another to recommence testing.High automation Automatic oxygen filler equipped, oxygen filling by one press;Automatic controlling of water volume, filling, heating, empting and jacket water circulation;Automatic sample ignition;Automatic temperature rise measurement and result calculation.5.jpg TR-DC5015-4.jpg




Easy to use Windows-based software.
Easy data handling, real time data can be transmitted through internal network.
dd4.jpgWith CAN bus interface, several calorimeters can be controlled by a single PC.
Connected with balance and network by standard interface RS232.
Durable bombs need hydrostatic pressure test only once a year.


Application:

TRYTE calorimeter can be used to determine the calorific value of solid and liquid combustibles such as coal, coke, petroleum oil, cement black meal, biomass fuels as well as building material.


Conformance to Standards:
GB/T213-2008 Standard Test Method for Calorific Value of Coal
GB-T384-1981 Determination of calorific value of petroleum products
JC/T1005-2006 Determination of calorific value of cement black meal
ASTM D5865-2007 Standard Test Method for Gross Calorific Value of Coal and Coke
ISO1928 Solid Mineral Fuels – Determination of gross calorific value by the bomb calorimetric method and calculation of net calorific value


Specifications:

Analysis time of calorimeter: <15min
Temperature Resolution: 0.0001K
Heat Capacity Precision: ≤0.1%
Jacket Type: Isoperibol
Accuracy: Test results within range of standard sample
Heat Capacity Stability: ≤0.2% within three months
Network/Balance Connection: Available (by interface RS232)
Power Requirement: 220V(-15% ～10%), 50/60 Hz
Max.Power: 1.5kW
