TR-TC-U4000 Double Beam UV-VIS Spectrophotometer
  • Name: TR-TC-U4000 Double Beam UV-VIS Spectrophotometer
  • Model : TR-TC-U4000
  • Erp code: 9000000169
    • | Share




Product Description

Key components are of high quality,new unique optical system design,cause the instrument with excellent optical properties and metering performance,low stray light,high metering accuracy and reliability.

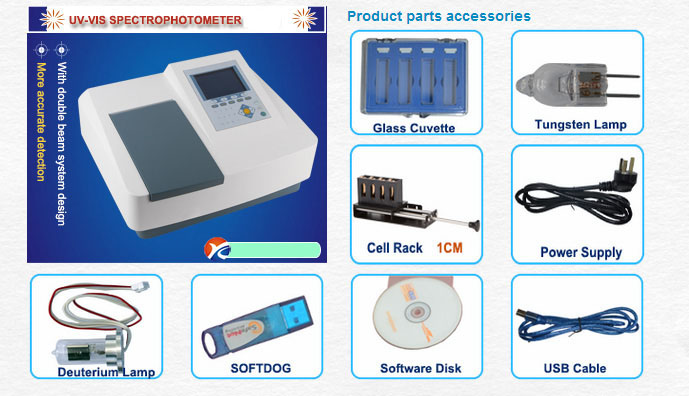

111 拷贝.jpg


Features

I. The real double beam metering system,with advanced circuit measurement and control system,make the instrument with high reliability and low noise.
II. Unique installation of deuterium lamp and tungsten lamps,the design and working way of automatic light switch and finding the best location,allowing users to operate the instruments and maintain or replace light source in a more convenient,correct and safer way.

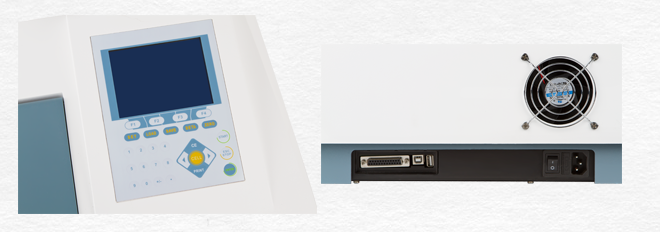

III. Adopt large screen Chinese window(LED) LCD screen,has a good human-machine conversation interface.
IV. Excellent software design and procedure,make instruments have stronger spectral data processing function:automatically scan measured spectra,multi-wavelength(1-3λ) determination,kinetic determination,1-3 curve fitting,1-4 derivative spectra,access,display,print spectra and analyze data.
V. Powerful Windows-based software platform,user-friendly,powerful,easy to store or output,and to facilitate business,save costs.
VI. 16 bit high speed and high precision A/D conversion,instrument with high precision,fast response,using the latest ARM system,the buit-in double system in both English and Chinese,instrument internal can store huge amounts of data.
VII. External USB and RS232 interface,can be connected directly to the display,PC,printers and storage devices.


Technical parameters

Model:

TR-TC-U4000

Optical system:

Double Beam

Wavelength range:

190-1100 nm

Wavelength accuracy:

≤+/-0.1nm (656.1nm D2); ≤+/-0.3nm (full wavelength range)

Wavelength repeatability:

≤0.1nm

Photometric range:

0-200%T, -0.3-3A

Spectral bandwidth:

2 nm

Baseline Flatness:

≤ +/-0.001A

Stray light:

≤ 0.05%T

Stability:

<= 0.001 A/h(@500 nm)

Display :

6" LCD

Photometric Accuracy:

+/-0.002A(0-0.5A),+/-0.004A(0.5-1A),+/-0.2%T(0-100%T)

Data output (print):

RS232/USB Driver

Light source:

Deuterium & Tungsten-halogen lamp

Operating voltage:

AC 220V/50Hz or AC 110V/60Hz
