Specification:

1. Usage: realizing etching process of the circuit board processing through high pressure spraying;

2. Structure characteristics: desktop body with more space, compact layout design and more convenient operation;

3. Function characteristics: opening-cover detection function to better protect the operator not splashed by liquid; low liquid alarm function, preventing dry heating function, automatic constant temperature function, automatic regular alarm function;

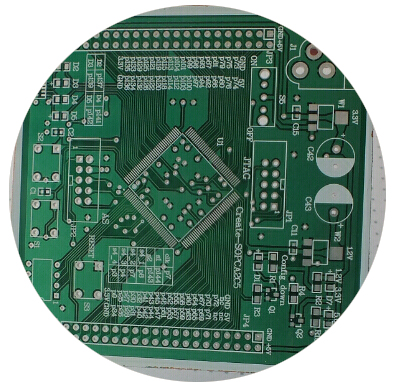

4. ★Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition etching process manual; In touch screen you can play the circuit board design sketch after etching process;

5. Maximum etching size: 320mm×200mm double-sided board;

6. Etching mode: hanging double-sided spraying etching;

7. Etching time: 5S～99M59S adjustable;

8. Etching temperature: room temperature~55°C adjustable;

9. Heating tube: 800W titanium heating tube;

10. Spray motor: 100W complete anticorrosive isolation pump;

11. ★Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;

12. Dosage of etching liquid: 20L (standard);

13. Working power: AC220V/50Hz  1000W;

14. Overall dimension: length 630mm×width 430mm×height 550mm;

15. Net weight: 30KG.
