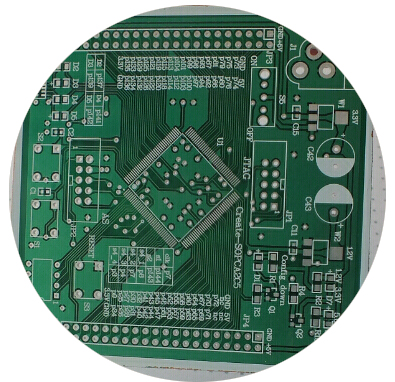

PCB board Related

Contact us
COMPANY : Tryte Technology (H.K.) Limited
ADD : UNIT 04, 7/F, BRIGHT WAY TOWER, NO. 33 MONG KOK ROAD, KOWLOON, HONGKONG.
TEL:00852-2389298
FAX: 00852-35902333
CELL:0086-15367067787(Robin)
SITE : www.trytetc.com
SKYPE : live:myformat666
EMAIL : sale@trytetc.com
more>>>

TR-NY-ZFM400 Film laminator
  • Name: TR-NY-ZFM400 Film laminator
  • Model : TR-NY-ZFM400
  • Erp code: 9000001107
    • | Share


Specification:

  1. Usage: transfer photoreceptive film to the copper-clad board through heating;

  2. ★Control system: PLC + PID control;

  3. ★Film covering mode: special up and down automatic film-collecting device, which can realize double-face automatic board-entering, automatic film-collecting and automatic film-laminating;

  4. Effective film-laminating width: 500mm;

  5. Film-laminating speed: 1000~4000mm/min adjustable;

  6. Thermal film-laminating temperature: room temperature～200°adjustable;

  7. Heating mode: inner-heating silicon roller;

  8. Heating power: 4KW;

  9. Overall dimension: 1200mm×750mm×1180mm;

  10. Weight: 360Kg.


Specification:

  1. Usage: transfer photoreceptive film to the copper-clad board through heating;

  2. ★Control system: PLC + PID control;

  3. ★Film covering mode: special up and down automatic film-collecting device, which can realize double-face automatic board-entering, automatic film-collecting and automatic film-laminating;

  4. Effective film-laminating width: 500mm;

  5. Film-laminating speed: 1000~4000mm/min adjustable;

  6. Thermal film-laminating temperature: room temperature～200°adjustable;

  7. Heating mode: inner-heating silicon roller;

  8. Heating power: 4KW;

  9. Overall dimension: 1200mm×750mm×1180mm;

  10. Weight: 360Kg.
