Specification:

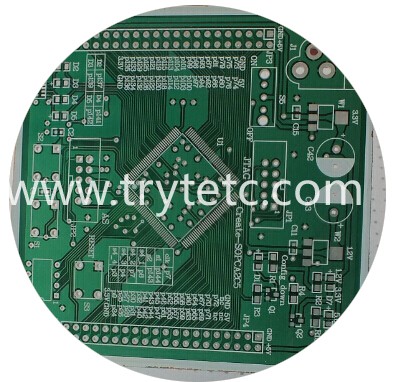

1.Usage: automatic drilling and milling functions of circuit board;
2. Maximum size: 300mm*400mm;
3. Working mode: 2.5 D double-sided processing mode
4. Control handle is made up of ARM + FPGA of embedded control system, there is double USB interface in control handle, realizing masterslave USB communication model, that is, as the main USB device, directly read U disk data, as the slave USB device, communicate with the computer, which can completely work off the computer;
5. All module driving mode, three step motor modules + driving chip united to drive XYZ axis moving;
6. Casting fuselage, Y axis moves driving beam arm move, in sculpture and drilling process, no displacement of circuit board;
7. Random configuration of processing data auxiliary processing software,
8. With function of X, Y, Z axis hardware and software limit;
9. High power spindle motor, higher processing precision, with memory function without electricity, no worries about outage;
10. Handle human-computer interface: 128 * 64 dot matrix liquid crystal display + 18 multi-function keys, with simple and intuitive operation;
11. Processing precision: ±0.01mm
12. Repeat precision: 0.01mm;
13. Suitable drilling flower: 0.3mm~3mm Drilling handle: 3.175mm;
14. Suitable milling cutter: 1MM~3MM Cutter handle: 3.175MM
15. Processing speed: 0~3m/min(actual-time adjustable);
16. Spindle motor: 1200W frequency conversion motor The highest speed 61000 revolves/min;
17. Step motor: 35W four phase step motor *3;
18. Shaft driving mode: entire advanced screw driving
19. Spindle movements itinerary: 60mm;
20.With auto tool change function.
21.Tool change number: 10
22.With water cool automatic tool changer spindles
23. Self-contained mating PC control software, lifetime free upgrades;
24. Working power: AC220V/50Hz 1500W;
25. Overall dimension: main engine: length 720mm*width 750mm*height 500mm;
control cabinet: length 200mm*width 300mm*height 550mm;
26. Weight: 120KG
