Main Features:
1. Transmission mechanism adopts ball screw technology, stable and accurate transmission; imported servo motor, low noise and accurate control
2. 8 inch touch screen display, Chinese menu. Real-time display of time, load tension; the newest software has real-time display of anti - tension curve function; the instrument has powerful data display and analysis, management capabilities.
3. Applies modular type printer which is easy to install and has low fault; thermal printer
4. Direct measuring result: after one group of experiment is finished, the result is shown and the report is printed directly including mean, standard deviation and coefficient of variation.
5. High degree of automation: the instrument applies advanced accessories domestic and abroad .Microcomputer operates information sensing, data processing and motion control, has features of automatic reset, data memory, overload protection and fault self-diagnosis.
6. Multi-function, flexible configuration: the instrument is mainly used to measure the plastic films. If users change the configuration, the instruments can also be used to measure other materials such as paper, chemical fiber, metal wire and metal foil. Also it can be applies in measuring film resistance, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, anti-tension energy absorption index. Especially can measure micro values.
Application:
Measurement of paper tension, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, especially can sense micrometer small value, unique determination of the corresponding parameters of toilet paper (including wet strength) ability.
Applicable in Paper, cardboard, plastic film, composite film, flexible packaging materials, adhesive, adhesive tape, adhesive, rubber, paper, plastic aluminum plate, paint, fabric, textile, waterproof material, triangle belt180 degree peel, 90 degrees peel strength, elongation, fixed length force experiment ;
Measurement of aluminum foil, aluminum strip tension, tensile strength, peel strength, elongation.
Measuring the tensile strength, elongation and tensile modulus of plastic film.
Measuring food bag heat sealing strength, tensile strength, peel strength.
Measurement of bonding strength of sanitary napkins, edge strength, tensile strength, elongation
Measuring the peel strength and tensile strength of the pressure sensitive adhesive tape.
Measuring the breaking strength and elongation of synthetic fiber filament.
Measurement of the slide fastener.
Technology Standard
GB/T 12914-1991《Determination of tensile strength of paper and paperboard (constant velocity tensile method》.
Referring to GB 13022-91、GB/T1040-92、GB2792-81、GB/T 14344-9、GB/T 2191-95、QB/T 2171-95.

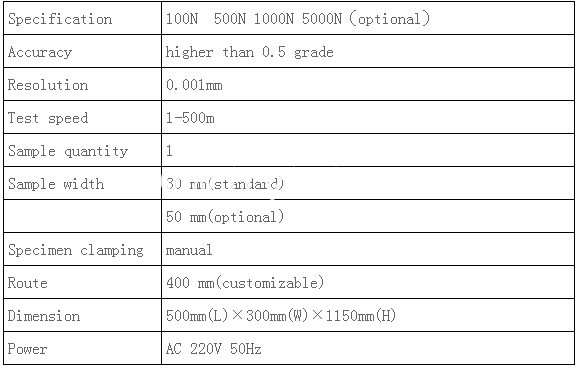

Product Parameters
Product Configuration Main Instrument ,controlling box one power line, connecting line, four rolls of printing paper PS: optional computer system |
Technology Standard:
GB/T 12914-1991《Determination of tensile strength of paper and paperboard (constant velocity tensile method》.
Referring to GB 13022-91、GB/T1040-92、GB2792-81、GB/T 14344-9、GB/T 2191-95、QB/T 2171-95.
Product Parameters:
Product Configuration Main Instrument ,controlling box one power line, connecting line, four rolls of printing paper PS: optional computer system
|
