Applications： It is applicable to all kinds of nanometer, submicron rigid granules and emulsion
Technical parameter:
Model | TR-SA802 |
Execution standard | GB/T 19627-2005/ISO 13321：1996 GB/T 29022-2012/ISO 22412：2008 |
Measurement range | 1-10000nm(It is related to samples.) |
Concentration range | 0.1mg/ml­--100mg/ml(It is related to samples.) |
Accuracy error | <1%( National standard material D50) |
Repeatability error | <1%( National standard material D50) |
laser light source | Fibre-optical semi-conductor laser,λ= 532nm |
Detector | Photomultiplier tube（PMT） |
Scattering angle | 90° |
Sample chamber | 4mL |
Temperature range | 5-40 ℃（accurate to 0.1℃） |
Test speed | <5 Min |
Volume | 480mm×270mm×170mm |
Weight | 12Kg |
Main parameters of digital correlator | Autocorrelation channel:256 ;baseline channel:4; Minimum resolving time: 6ns; Delay time: 100ns-10ms(adjustable); Arithmetic speed: 162M/S |
Main Features:

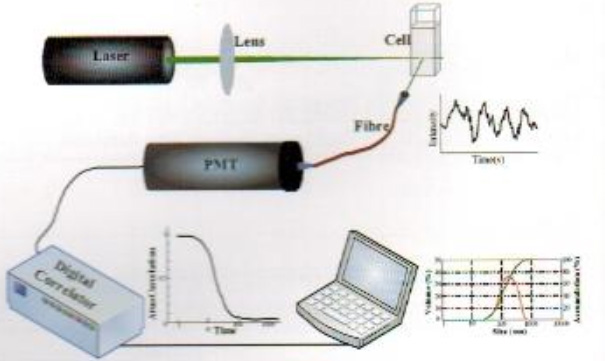

1. Advanced measurement principle: It carries out the principle of dynamic light scattering and photon correlation spectroscopy. Particle size is determined according to the Brown velocity of particle in the liquid.
Different sizes of particle, different velocity. When the laser irradiates these particles, particles of different sizes will make the scattered light speed fluctuation different. By Photon correlation spectroscopy, the particle size could be analysed according to photon fluctuation in specific direction.
2. High resolution: nano particle size is determined by PCS technology, which can distinguish nanosecond signal fluctuation. The core components of the instrument adopts CR256 digital correlator developed by our company, which is of high resolution to identify 8ns and of high signal processing speed.
3. High sensitivity and signal-to-noise ratio: It adopts the professional photomultiplier tube(PMT) of high performance, which is of high sensitivity and signal-to-noise ratio to photon signal.
4. Outstanding operational capability: We use high speed digital correlator CR256 for data acquisition and real-time correlation operation. The data processing speed is up to 162M so that it reflects dynamic light scattering information of particle in real-time and effectively.
Shipping Package:
Name | Quantity |
PSA802 Laser Particle Size Analyzers main machine | 1 set |
Laser particle analyzer software | 1 set |
Encryption dog | 1 pc |
National sub micron, nanometer particle size standard material | 1 bottle |
High speed dispersion homogenizer | 1 set |
Ultrasonic cleaner | 1 set |
sample cell | 5 pcs |
Sampling spoon | 2 pcs |
Tools | 1 set |
Power line | 1 pc |
Lens wiping paper | 3pcs |
Certificate | 1 pc |
Warranty card | 1 pc |
