2.TR-BE-1100 four-dimensional rotation hybrid instrument
The BE -1100 four-dimensional rotation hybrid instrument has a unique design , can mix samples  a variety of sample tube and any angle of rotation. It is widely used in molecular hybridization, and blood mixed sample, the rotation speed is moderate , the four fixture located on the rotating panel can be individually adjusted, so you can can have four different ways in a mixing.

The instrument is compact, convenient, and can be easily transferred to other places . Bench, or the incubator , the shell and panel of the instrument has been specifically designed to facilitate cleaning and decontamination .

Unique adjustable rotating frame combination:

Product features:
1. A variety of rotation way from mild rotation to somersaults way.
2. Widely used in biological molecules , histochemistry, biochemistry, clinical medical and etc.
3. 5 kinds of centrifugal jig , greatly meet the experimental requirements.
4. Press the rotating fixture slightly, can achieve positive and negative rotation.
5. Can be used for cold storage and incubator.

The standard accessories:
0.5ml centrifuge tube 21 Pcs * 2 (jig )
1.5ml/ 2m   l15 Pcs * 2 (jig )
5ml/7ml centrifuge tube 7 Pcs* 2 (jig )
10ml/15ml centrifuge tube 7 Pcs* 2 (jig )
50ml centrifuge tube 6 Pcs (jig )

Technical parameters:
Speed: 18r/min
Size : 240 * 145 * 210mm
Temperature range :4 -65℃
Power : 4Kw
Weight : 1Kg
Power: 220V 50Hz

3.TR-BE-2011 Swing test-tube hybrid instrument
The BE - 2011 test-tube swing hybrid instrument is a small ultra-low noise mix instrument, can be applied to mix small samples, the steady , gentle pace of work to ensure a uniform and thoroughly mixed samples at the same time to ensure the integrity of the fragile cells , product the cell experiments, biological samples , reagents, etc. from damage in the mix of training process. The product can put variety of samples once a time, and equipped with non-slip pad.

Product introduction:
1.         Small size, simple operation
2.         Stable performance, low noise
3.         Non-slip , soft swing
4.         Can be used for cold storage and incubator
5.         Can be placed on a variety of specifications of the test tube
6.         Tilt angle of 25

Technical parameters:

1.         Swing anger: 25 °
2.         Beat frequency : 16 beats / min
3.         Platform size : 300 * 110mm
4.         Ambient temperature :4 -65 ℃
5.         Max power consumption : 20w
6.         Maximum load : 1Kg
7.         Dimensions : 370 * 140 * 140mm
8.         Power: 220V 50Hz
9.         Weight : 4Kg

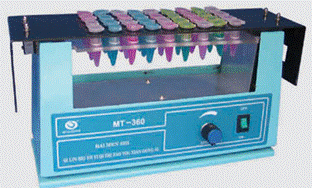

4.TR-MT-360 Multi-tube rapid mixer
Parameters:
>Frequency: 2800rpm
>Speed: adjustable
>Max. mixing volume: 1.5ml×36
>Voltage:AC220V±10% (50/60Hz)
>Power Consumption: 10w

5.TR-WH-986 Rotation Mixer
Summary:　　
The WH-986 rotating mixer and QB-206 multipurpose rotating mixer are specially designed by our company for the experiments with high requirements of sample and reagent evenness. They may maintain the full mixing of samples and reagent as well as protect cell tissues in homogenizing. The instruments may mix, oscillate and shake many test tubes and centrifuge tubes ranging from 0.5---50ml in capacity and as well as bags membrane materials. They are also applicable to being used in low-temperature tanks and thermostanks.

Technical Information:
>Model No.WH-986
>Rotary speed:5rpm imported motor
>Operation mode: up to 360° rotating/swing
>Working size:250×100/0.5--10ml
>Voltage:AC220V±10% (50/60Hz)
>Standard configuration:0.5ml×18;1.5ml×30;5ml×12

6.TR-QB-328 Ultra-small Rotation Incubator
Order information:
Centrifuge tube rack ( 360℃ rotation)
Centrifuge tube 1.5ml 48 ( 230mm )
Centrifuge tube rack ( 360℃ rotation)
Centrifuge tube 15ml 20 ( 230mm )
Centrifuge tube rack ( 360℃ rotation)
Centrifuge tube 50ml 12 ( 230mm )
1.         It has a simple structure,beautiful appearance and ultra-small design. it is especially suitable for use in the low temperature cabinet and constant temperature cabinet.
2.         It can adjust the angle of rotation, and the horizontal position is used for a small mixing while the vertical position used for complete mixing.
3.         Rotation type speed regulation can arbitrarily set the mixing requirements of 10-80 rev/min. simple and practical.
4.         You can choose to buy three kinds of tube fixture with different sizes, which are suitable for different sample cells.
5.         It is used to process the suspended biology or the blood sample which requires for gas exchange.
6.         It is equipped with simple fixtures which can be quickly installed or removed.

Specification:
1.         Standard configuration: choose one future
2.         Rotation velocity: 5~80 rpm
3.         Mixing angle: can be adjusted freely
4.         Rotation speed control : Knob type step-less speed regulation
5.         Temperature range: 4℃ ~ 60 ℃
6.         Power supply power: 220V/40W
7.         Overall dimension: 240*210* 310mm
8.         Selection and matching table of fixture
centrifuge tube: 1.5ml* 48 branches (Code: QB- 328-48)
centrifuge tube: 1.5ml* 20 branches (Code: QB- 328-20)
centrifuge tube: 1.5ml* 12 branches (Code: QB- 328-12)

7.TR-QB-128 Rotary cultivation mixer
Features:
1.         Can also mix different pipe rack or two of the same pipe rack.
2.         Have a large capacity of mixing and rotating the small sample at the same time.
3.         Simple fixture equipment can be quickly installed or removed
4.         Knob speed adjustment can be arbitrarily set to 10 ~ 80 rev / min of mixing requirements , and simple to use.

The technical parameters:

Temperature range: 4~ 60℃
Mixing angle: it's optional to adjust.
Rotary speed: 10~80 rpm
Speed control: Step-less control
Maximum mix: 1200ml
Minimum mix: 1.5ml
Power: 220V/40W
Overall dimension: 270*220* 400mm
Instrument configuration: a host, two pipe rack

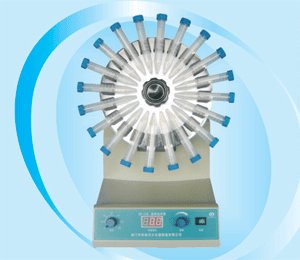

8.TR-QB-228 Rolling Mixer
Summary:　　
>Mixing angle is adjustable. Horizontal position for small-amplitude mixing and vertical position for fully mixing.
>Mainframe has anti-spray platform with three optional accessories of tube racks applicable to sample tubes in different specifications.
>Applicable to handle suspension organism needing air exchange or blood sample.
>Digital rotating speed display, timer 0-120min/continuous with precise control. High repeatability and optimized experimental conditions.

Technical Information:
>Rolling speed: 10-80rpm
>Digital speed control
>Timing: 0~120 Min/Continuous
>Overall dimensions: 230x250x 300mm (Mainframe)
>Voltage:AC220V±10% (50/60Hz)

Optional accessories:
>Centrifuge tube rack (360° rotation):centrifuge tubes 1.5ml×52
>Centrifuge tube rack (360° rotation):centrifuge tubes 15ml×20
>Centrifuge tube rack (360° rotation):centrifuge tubes 50ml×12

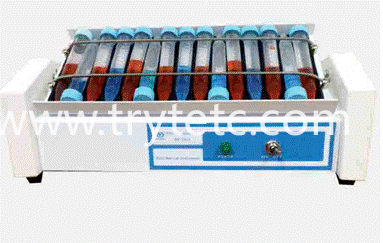

9.TR-SRT Roller Mixer
Summary:
1.         Simultaneously swing and roll, mixing fully and softly with no damage to cells.
2.         Analog fixed speed and digital variable speed.
3.         7 rollers for various tests.
4.         Applicable to sample tubes or bottles of various specs.
5.         Timing and continuous operation.
6.         Apply to 4 ℃ cold chamber or 60℃ incubator with relative humidity of 80%.
7.         Soft high-efficiency 3D mixing is available: swinging and rolling.
    STR-101 analog, with fixed speed at 30rpm, convenience in operation and only switch in need.
    STR0202 Digital, with variable speed at 5~80rpm, timer: 0~120min/continuity.
8.         Especially apply to the mixing of blood, viscous liquid and liquid-solid suspension with no high requirement of ventilation. The soft but high-efficient 3D mixing makes blood sample need no anticoagulant and keeps blood cells from being damaged.
9.         Structurally solid and easy for cleaning with plastic rollers reliable in safely and stainless stell tray to collect accidentally spilled liquid.

Technical parameters:

10.TR-KB-3 Vortex Mixer
The all-new vortex mixer is suitable for short-time work (inching), and it is OK that you press the work table. And it also can convert continuous operation.

1.         The speed regulation range is broad, which is a stepless speed regulation.
2.         Two kinds of standard gaskets can be chosen freely and application range is wide.
3.         It has an ABS engineering plastic shell, with no spraying of paints, beautiful and durable; cast iron base is solid and reliable.
4.         It has various function of compact design, inching, continuity and speed regulation.
5.         The foot-mat of the silica gel base is super shockproof.
6.         Imported dual-channel bearing of a eccentric ball with original packing has a motor with the wind blades, with good performance of ventilation and low heating.

Specification:
1.         Hybrid mode: Circumference
2.         Turnover diameter: 4nm
3.         Power: 40w
4.         Workbench size: bowl type 90mm interchange
5.         Working method: inching/continuing/timing.
6.         Regulating range: 500~2800rpm (different rotate speed depend on different gasket and negative load)
7.         Speed setting: Knob
8.         Power supply:220V/50Hz
9.         Overall dimensions: 125*135* 170mm
10.     Weight: 4.2 KG

11.TR-QB-600 High - Speed Oscillating Mixer
Summary:　　
QB-600 high-speed vibrating mixer, our company's latest mixer improved with reference to Japanese technology. It may quickly mix and vibrate with multiple containers. The functions of manual or automatic mixing can be achieved by exchanging different fittings, and the liquid in all centrifuge tubes and test tubes of 50ml, 15ml and 1.5ml may also by quickly mixed, bringing about a top-class mixing instruments for your tests.

Specifications:
Oscillation mode: gyration
Oscillation speed: around 300~2600 rpm
Gyration amplitude: around 3mm
Power: 35W
Timing: 0~120 min/continuity
Weight:around 4~ 5 kg

Matching parts for MIX-QB-600:
MIX-QB-600-50            480.00 (50ml centrifuge tube with 6 fixtures)
MIX-QB-600-15            480.00 (15ml centrifuge tube with 12 fixtures)
MIX-QB-600-1.5            480.00 (1.5ml centrifuge tube with 24 fixtures)
MIX-QB-600-1             480.00 (hand- held stool)

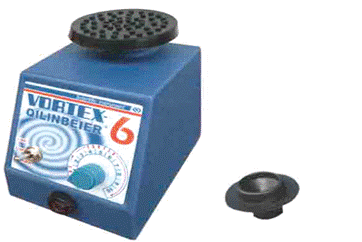

12.TR-VORTEX-6 Vortex Mixer
Summary:　　
The Vortex-6 mixer upgraded from Vortex-5, and is uniquely equipped with light-controlled device with no need of frequent power supply switching, totally different from original operation mode.

Technical Information:
>Control mode: light-operated induction
>Induction distance: 30cm
>Operation mode:point touching, continuous,speed regulation
>Rotating Speed: 2800rpm
>Working Plate:exchangeable between bowl type and flat type
>Voltage: 220V±10% (50/60Hz)
>Power: 50W
>Overall dimension: 170×120× 170mm
>Net weights: 4.8KGS

13.TR-VORTEX-5 Vortex Shaker
Summary:　　
Powerful vortex mixer of point touching, continuity and speed regulation.
>Mixed mode of touching and vortex: It may be controlled through speed regulation to mix from low-speed to high-speed with proper modes to choose as required.
>Multifunction: Both bowl type shaking plate and flat type shaking are provided for manual and automatic mixing modes of differenct test tubes and containers.
>Mixed mode of automatic and touching: Press three point switch to choose automatic or touching modes.
>Stable operation: Enough weight and integrated metal shell allow various shaking to have a stable operation platform.

Technical Information:
>Operation mode:point touching, continuous,speed regulation
>Rotating Speed: 2800rpm
>Working Plate:exchangeable between bowl type and flat type
>Voltage: 220V±10% (50/60Hz)
>Power: 50W
>Overall dimension: 170×120× 170mm

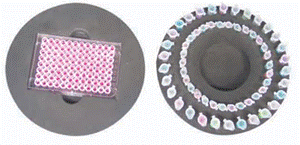

Optional accessories:

96 holes Elisaplate micropore plug-in board
60 holes centrifuge tubes micropore plug-in board (30 holes 0.5ml centrifuge tubes, 30 holes 1.5ml centrifuge tubes)

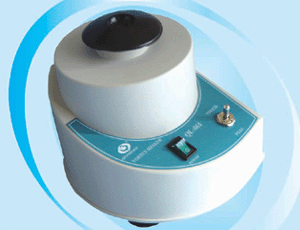

14.TR-QL-902 Vortex Mixer
Summary:　　
>Mini type, elegant appearance.
>ABS engineering plastic, with no paint spray coating but acid, alkali and collision resistance.
>Touching and continuous two operation modes. Working plate is bowl type with wear-proof natural rubber.
>Cast iron pedestal, very stable when working.
>Suitable for 0.5ml---50ml tubes

Technical Information:
>Operation mode:touching, continuous
>Rotating Speed: 2800rpm
>Working Plate:bowl type
>Voltage: 220V±10% (50/60Hz)
>Power: 30W
>Overall dimension: 150×105× 115mm
>Weights: 3kgs

15.TR-QL-901 Vortex Mixer
Summary:　　
Characterized by compact and reliable structure, small buck, low power and noise, vortex mixer is widely used in biochemistry, gene engineering, and medicine experiments, mixing quickly, uniformly and ultimately liquid with liquid, liquid with solid, and solid with solid (powder) to provide any desired liquid and powder.
The forming technology of enhanced type engineering plastic is adopted in all mixers main frames with no paint spray coating but acid, alkali and collision resistance. The plate is fully made of wear-resisting natural rubber instead of former vulnerable plate of sponge. And, the mixer is integrated with the functions of continuity, dot-mode vibration (touching), speed regulation, flat type and bowl type, bringing about a rapid operation platform for experiments.

Technical Information:
>Model No.QL-901
>Operation mode:touching, continuous
>Rotating Speed: 2800rpm
>Working Plate size:Φ 60 mm rubber
>Voltage: 220V±10% (50/60Hz)
>Power: 40W
>Overall dimension: 160×120× 170mm

16.TR-GL-88B Vortex Shaker
Summary:　　
Characterized by compact and reliable structure, small buck, low power and noise, vortex mixer is widely used in biochemistry, gene engineering, and medicine experiments, mixing quickly, uniformly and ultimately liquid with liquid, liquid with solid, and solid with solid (powder) to provide any desired liquid and powder.
The forming technology of enhanced type engineering plastic is adopted in all mixers main frames with no paint spray coating but acid, alkali and collision resistance. The plate is fully made of wear-resisting natural rubber instead of former vulnerable plate of sponge. And, the mixer is integrated with the functions of continuity, dot-mode vibration (touching), speed regulation, flat type and bowl type, bringing about a rapid operation platform for experiments.

Technical Information:
>Operation mode:continuous
>Rotating Speed: 2400rpm
>Working Plate size:Φ 100 mm wear-proof rubber
>Voltage: 220V±10% (50/60Hz)
>Power: 40W
>Overall dimension: Φ120× 100mm

17.TR-XW -80A Vortex Shaker
Summary:　　
Characterized by compact and reliable structure, small buck, low power and noise, vortex mixer is widely used in biochemistry, gene engineering, and medicine experiments, mixing quickly, uniformly and ultimately liquid with liquid, liquid with solid, and solid with solid (powder) to provide any desired liquid and powder.
The forming technology of enhanced type engineering plastic is adopted in all mixers main frames with no paint spray coating but acid, alkali and collision resistance. The plate is fully made of wear-resisting natural rubber instead of former vulnerable plate of sponge. And, the mixer is integrated with the functions of continuity, dot-mode vibration (touching), speed regulation, flat type and bowl type, bringing about a rapid operation platform for experiments.

Technical Information:
>Operation mode: continuous
>Rotating Speed: 2800rpm
>Working Plate size: Φ 110 mm rubber
>Voltage: 220V±10% (50/60Hz)
>Power: 40W
>Overall dimension: Φ160× 140mm

18.TR-QL-866 Vortex Shaker
Summary:　　
Characterized by compact and reliable structure, small buck, low power and noise, vortex mixer is widely used in biochemistry, gene engineering, and medicine experiments, mixing quickly, uniformly and ultimately liquid with liquid, liquid with solid, and solid with solid (powder) to provide any desired liquid and powder.
The forming technology of enhanced type engineering plastic is adopted in all mixers main frames with no paint spray coating but acid, alkali and collision resistance. The plate is fully made of wear-resisting natural rubber instead of former vulnerable plate of sponge. And, the mixer is integrated with the functions of continuity, dot-mode vibration (touching), speed regulation, flat type and bowl type, bringing about a rapid operation platform for experiments.

Technical Information:
>Operation mode: touching, continuous, stepless speed regulation
>Rotating Speed: 3000rpm
>Working Plate size:Φ 55 mm rubber
>Voltage: 220V±10% (50/60Hz)
>Power: 40W

19.TR-QL-861 Vortex Shaker
Summary:　　
Characterized by compact and reliable structure, small buck, low power and noise, vortex mixer is widely used in biochemistry, gene engineering, and medicine experiments, mixing quickly, uniformly and ultimately liquid with liquid, liquid with solid, and solid with solid (powder) to provide any desired liquid and powder.
The forming technology of enhanced type engineering plastic is adopted in all mixers main frames with no paint spray coating but acid, alkali and collision resistance. The plate is fully made of wear-resisting natural rubber instead of former vulnerable plate of sponge. And, the mixer is integrated with the functions of continuity, dot-mode vibration (touching), speed regulation, flat type and bowl type, bringing about a rapid operation platform for experiments.

Technical Information:
>Operation mode: touching, continuous
>Rotating Speed: 3000rpm
>Working Plate size:Φ 55 mm rubber
>Voltage: 220V±10% (50/60Hz)
>Power: 40W

20.TR-KB-3-D Hovering -type Mixer
MIX-KB-3-D Is a compact hybrid instrument, suitable for blood collection tubes and centrifuge tubes mixed.
MIX-KB-3-D vortex mixer is a three-dimensional movement, the moderate movement, won't produce bubbles. It's ideal choice for small doses of samples.
MIX-KB-3-D 's concave pad can firmly fix the tube.
The applicable pipes are: 60* 1.5ml, 30*3ml, 21*7ml, 17*15ml which can be used in freezer.
1.         Rotary motion provide a gentle and thorough mixing.
2.         Suitable for mixed serum sample and centrifuge tubes
3.         Fixed speed and gradient
4.         Suitable for use in cold storage room

Specifications:
Rotation speed: 6rpm
Motility/ Gradient: 3-D/Fixed 20°
Maximum loading： 0.8Kg
Working temperature: 4~ 65℃
Power:230V/50Hz
Overall dimension: 241*172* 172mm
Weight: 1.2 Kg
