TR-MLS-PA BlueSpin LED Digital Magnetic Stirrer
  • Name: TR-MLS-PA BlueSpin LED Digital Magnetic Stirrer
  • Model : TR-MLS-PA
  • Erp code: 9000000879
    • | Share


Features of TR-MLS:

- Speed range of 100-1500 rpm
- Max. stirring quantity 3L
- LED display set and actual speeds
- Microprocessor control technology guarantees speed control accuracy
- ABS casing with fire retardant material, resistance of weak acid and alkali


Specifications:

Dimension of work plate [mm]φ135（5 inch）
Work plate material Plastic
Motor type DC motor
Motor rating input [W] 5
Motor rating output [W] 3
Power [W] 15
Voltage [VAC] 100-240
Frequency [Hz] 50/60
Stirring positions 1
Max. stirring quantity[H2O], L 3
Max. magnetic bar(L x Ø) [mm] 50
Speed range [rpm] 100-1500
Speed display LED
Speed display resolution [rpm]±1
Protection class according to DIN EN60529 IP42
Dimension [W x D x H] mm 150×260×80
Weight [kg] 1.8
Permissible ambient temperature [℃] 5-40
Permissible relative humidity 80%


Accessories:

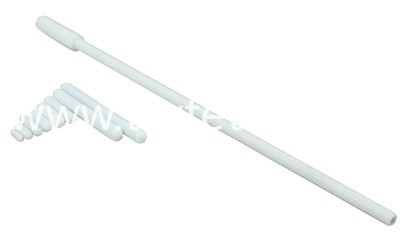

　MLS-PA-1.jpgStirrer bars and stirrer bar remover（PTFE）, use below 150℃
Models
TR-MLS-PA TR-MLS-PATR-MLS-S10
TR-MLS-S TR-MLS-PA TR-MLS-S10
TR-MLS-S TR-MLS-PB
Cat. No. Size of stirrer bars [mm] Suitable for Max. stirrer bar 80mm Suitable for Max. stirrer bar 50mm Suitable for Max. stirrer bar 40mm
18900006 10mm x 6mm ● ● ●
18900007 15mm x 8mm ● ● ●
18900008 20mm x 8mm ● ● ●
18900009 25mm x 8mm ● ● ●
12500005 30mm x 6m ● ● ●
18900011 40mm x 8mm ● ● ●
12500004 51mm x 8mm ● ●
18900013 65mm x 8mm ●

18900014 80mm x 13mm ●

18900015 Stirrer bar remover, length of 200mm ● ● ●





Specifications:

Dimension of work plate [mm]φ135（5 inch）
Work plate materialPlastic
Motor typeDC motor
Motor rating input [W]5
Motor rating output [W]3
Power [W]15
Voltage [VAC]100-240
Frequency [Hz]50/60
Stirring positions1
Max. stirring quantity[H2O], L3
Max. magnetic bar(L x Ø) [mm]50
Speed range [rpm]100-1500
Speed displayLED
Speed display resolution [rpm]±1
Protection class according to DIN EN60529IP42
Dimension [W x D x H] mm150×260×80
Weight [kg]1.8
Permissible ambient temperature [℃]5-40
Permissible relative humidity80%


Accessories:

　MLS-PA-1.jpgStirrer bars and stirrer bar remover（PTFE）, use below 150℃
Models
TR-MLS-PATR-MLS-PATR-MLS-S10
TR-MLS-STR-MLS-PATR-MLS-S10
TR-MLS-STR-MLS-PB
Cat. No.Size of stirrer bars [mm]Suitable for Max. stirrer bar 80mmSuitable for Max. stirrer bar 50mmSuitable for Max. stirrer bar 40mm
1890000610mm x 6mm●●●
1890000715mm x 8mm●●●
1890000820mm x 8mm●●●
1890000925mm x 8mm●●●
1250000530mm x 6m●●●
1890001140mm x 8mm●●●
1250000451mm x 8mm●●
1890001365mm x 8mm●

1890001480mm x 13mm●

18900015Stirrer bar remover, length of 200mm●●●
