TR-LS40-S LED Digital Overhead Stirrer
  • Name: TR-LS40-S LED Digital Overhead Stirrer
  • Model : TR-LS40-S
  • Erp code: 9000000758
    • | Share


Overhead stirrer is suitable for mixture of high viscosity liquid or solid-liquid. Widely used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other fields.


Features ofTR-LS40-S:
- High reliability, long continuous service, outstanding performance
- Cover the speed range from 0 to 2200rpm, the speed is accurate and controlled
- Brushless DC motor drive, low noise and maintenance free
- LED displays actual speed
- Overload protection, motor would automatically stop in case of continuous overload
- Anti-spill samples, PC control system starts up smoothly, prevent samples overflow


Specifications:


TR-LS40-STR-LS40-S
Max. stirring quantity(H2O)[L] 40 20
Motor rating input[W] 120 60
Motor rating output[ W] 100 50
Voltage[VAC] 100-240 100-240
Frequency [Hz] 50/60 50/60
Power[W] 130 70
Speed range[rpm] 0-2200 0-2200
Speed display accuracy[rpm] - -
Speed display LED LED
Speed display resolution[rpm]±1±1
Max. torque[Ncm] 60 40
Torque display - -
Overload protection LED lights, motor automatic stops
Motor protect LED lights, motor automatic stops
Viscosity max. [mPas] 50000 10000
Chuck range diameter[mm] 0.5-10 0.5-10
Dimension[W x H x D] (mm) 83 x 220 x 186 83 x 220 x 186
Weight[kg] 2.8 2.6
Protection class acc. to DIN/EN 60529 IP42 IP42
Temperature[oC] 5-40 5-40
Permission relative humidity[%] 80 80
Remote control(RS232 interface) N/A N/A





Accessories:

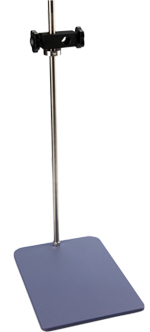

18900131.jpg Cat. No：18900131
Universal plate stand (W x D: 20 x 31cm), including support holder (H: 78cm) and fixing device




Cat. No.：18900071
Crossed stirrer, shaft length 40cm, stirrer diameter 5cm, 316L stainless steel

Standard stirring element, used at medium and high speeds
Cat. No.：18900072
Straight stirrer, shaft length 40cm, stirrer diameter 6cm, 316L stainless steel

Suitable for mixing of low viscosity media, used at medium and high speeds

Cat. No.：18900073
Blade stirrer, shaft length 40cm, stirrer diameter 6.8cm, 316L stainless steel

Gentle processing samples, used at low and medium speeds
Cat. No.：18900074
Centrifugal stirrer, shaft length 40cm, stirrer diameter 9cm, 316L stainless steel

Blades open with increasing speed for stirring in a round vessel with a narrow neck, used at medium and high speeds

Cat. No.：18900075
Crossed stirrer, shaft length 35cm, stirrer diameter 6.5cm, PTFE coated

Standard stirring element, used at medium and high speeds
Cat. No.：18900076
Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated

Suitable for mixing of low viscosity media, used at medium and high speeds

Cat. No.：18900077
Blade stirrer, shaft length 35cm, stirrer diameter 6.8cm, PTFE coated

Gentle processing samples, used at low and medium speeds
Cat. No.：18900078
Centrifugal stirrer, shaft length 35cm, stirrer diameter 8.5cm, PTFE coated

Blades open with increasing speed for stirring in a round vessel with a narrow neck, used at medium and high speeds



Specifications:



TR-LS40-STR-LS40-S
Max. stirring quantity(H2O)[L]4020
Motor rating input[W]12060
Motor rating output[ W]10050
Voltage[VAC]100-240100-240
Frequency [Hz]50/6050/60
Power[W]13070
Speed range[rpm]0-22000-2200
Speed display accuracy[rpm]--
Speed displayLEDLED
Speed display resolution[rpm]±1±1
Max. torque[Ncm]6040
Torque display--
Overload protectionLED lights, motor automatic stops
Motor protectLED lights, motor automatic stops
Viscosity max. [mPas]5000010000
Chuck range diameter[mm]0.5-100.5-10
Dimension[W x H x D] (mm)83 x 220 x 18683 x 220 x 186
Weight[kg]2.82.6
Protection class acc. to DIN/EN 60529IP42IP42
Temperature[oC]5-405-40
Permission relative humidity[%]8080
Remote control(RS232 interface)N/AN/A





Accessories

18900131.jpgCat. No：18900131
Universal plate stand (W x D: 20 x 31cm), including support holder (H: 78cm) and fixing device




Cat. No.：18900071
Crossed stirrer, shaft length 40cm, stirrer diameter 5cm, 316L stainless steel

Standard stirring element, used at medium and high speeds
Cat. No.：18900072
Straight stirrer, shaft length 40cm, stirrer diameter 6cm, 316L stainless steel

Suitable for mixing of low viscosity media, used at medium and high speeds

Cat. No.：18900073
Blade stirrer, shaft length 40cm, stirrer diameter 6.8cm, 316L stainless steel

Gentle processing samples, used at low and medium speeds
Cat. No.：18900074
Centrifugal stirrer, shaft length 40cm, stirrer diameter 9cm, 316L stainless steel

Blades open with increasing speed for stirring in a round vessel with a narrow neck, used at medium and high speeds

Cat. No.：18900075
Crossed stirrer, shaft length 35cm, stirrer diameter 6.5cm, PTFE coated

Standard stirring element, used at medium and high speeds
Cat. No.：18900076
Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated

Suitable for mixing of low viscosity media, used at medium and high speeds

Cat. No.：18900077
Blade stirrer, shaft length 35cm, stirrer diameter 6.8cm, PTFE coated

Gentle processing samples, used at low and medium speeds
Cat. No.：18900078
Centrifugal stirrer, shaft length 35cm, stirrer diameter 8.5cm, PTFE coated

Blades open with increasing speed for stirring in a round vessel with a narrow neck, used at medium and high speeds
