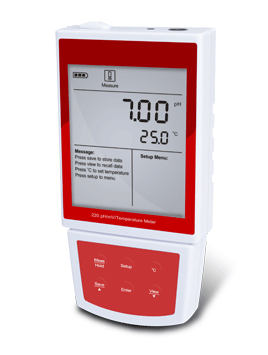

  • Name: TR-HS-02 Portable pH/mV/ORP/C/F Meter
  • Model : TR-HS-02
  • Erp code: 9000000774
  • | Share




Portable pH/mV/ORP/oC/oF Meter:

The meter are used to measure acidity and alkalinity of liquids.


Microprocessor-Based:

 TR-HSP series has built-in high performance CPU, it can work about 200 hours continuously with 9 volt battery.


Two Points Push-Button Calibration:

The meter with two points calibration function, it will prompt pH calibration solution when you calibrate the meter, you need only immerse the pH electrode into standard solution and press ENTER key, then the meter will be calibrated automatically.


Auto-Buffer Recognition:
In calibration, the meter will display ERROR if you use pH standard solution by mistake or not by the calibration prompt.














Specifications:

Viewing of Electrode Slope:

After calibration, the meter will indicate electrode slope, you can judge by the indicator to replace electrode or not.


Automatic Temperature Compensation:
 TR-HSP series with temperature sensor, you can view temperature value on the LCD, the meter with automatic temperature compensation for accurate reading under changing conditions.


Hold Function:
The meter with hold function, press MEAS/HOLD key, the meter momentarily freezes reading.


Message Indicator:
 TR-HSP series with operational message indicator. When you need setup or measurement, the message indicator will help you what you can do and how do it. You can set parameter or select functions under it's guide.


Save Data:
The meter can save 50 data sets, press SAVE key, and the meter will store current measured value, serial number, date, time and other information.


Output Data:
The data can be sent to computer through USB Communication interface, you can print out test report via software.


What's included:

Model 220: Meter, pH buffer, pH Electrode, Temperature Probe, battery.
Model 221: Meter, pH buffer, pH Electrode, Temperature Probe, ORP Electrode, battery.


    Model
 TR-HSP20 TR-HSP21

    pH Range
-2.00~16.00pH-2.00~16.00pH

    pH Accuracy
 ±0.01pH ±0.01pH

    Resolution
0.01pH0.01pH

    mV Range
0~±1999mV---

    mV Accuracy
±2mV---

    ORP Range
---0~±1999mV

    ORP Accuracy
---±2mV

     Temperature Range
0~100.0oC, 32~212oF


    Temperature  Accuracy
±1oC,  ±1.8oF


    Resolution
1oC


    pH Calibration Points
2 Points
     Set Buffer
NIST, pH4.00/6.86/9.18 or USA, pH4.01/7.00/10.01
    Temperature Compensation
0~100oC, 32~212oF, Automatic or Manual
     Memory
50 data sets
    Output
USB Communication interface
    Power Requirements
9V battery
    Battery Life
Approx. 200 hours of continuous use
    Dimensions
185(L)mm×88(W)mm×32(H)mm
    Weight
300g
