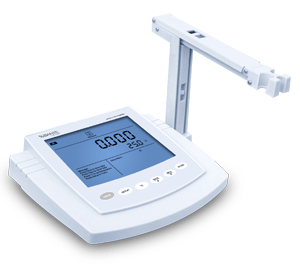

TR-HS-03 Microprocessor pH/mV Meter
  • Name: TR-HS-03 Microprocessor pH/mV Meter
  • Model : TR-HS-03
  • Erp code: 9000000763
    • | Share


Microprocessor pH/mV Meter:

 TR-HPW series Microprocessor pH/mV meter include the TR-HP25CW, 3CW, 3BW. The meters are used to measure acidity and alkalinity of liquids.


Two Points Push-Button Calibration:
 TR-HSPW series with two points calibration function, it will prompt pH calibration solution when you calibrate the meter. You need only immerse the pH electrode into standard solution and press ENTER key, then the meter will be calibrated automatically.









Specifications:

Auto-Buffer Recognition:

In calibration, the meter will display ERROR if you use pH standard solution by mistake or not by the calibration prompt.


Viewing of Electrode Slope:
After calibration, the meter will indicate electrode slope, you can judge by the indicator to replace electrode or not.

Automatic Temperature Compensation:
 TR-HSP3BW with temperature sensor, which can measure temperature of solution and can automatic temperature compensation.


Keypad and Electrode Holder:
The meter with waterproof panel, it's user can not worry for the sample solution splashing over the meter. The electrode holder can be used conveniently.


What's included:
Meter, pH electrode, pH buffers, Electrode holder, Power adapters, Temperature probe (Only for  TR-HSP3BW)


    Model
 TR-HSP25CW TR-HSP3CW TR-HSP3BW
    pH Range
0.00~14.00pH0.00~14.00pH0.00~14.00pH
    pH Accuracy
 ±0.05pH ±0.01pH±0.01pH
    Resolution
0.01pH0.01pH0.01pH
    mV Range
0~±1999mV0~±1999mV0~±1999mV
    mV Accuracy
±2mV±2mV±2mV
     Temperature Range
------0~100.0oC
    Temperature  Accuracy
------±1oC
    pH Calibration Points
2 Points


     Set Buffer
NIST, pH4.00/6.86/9.18 or USA, pH4.01/7.00/10.01
     Temperature Compensation
0~100oC, Manual0~100oC, Manual0~100oC,   Automatic
    Power Requirements
DC9V, using AC adapters, 220VAC, 50Hz
    Dimensions
210(L)mm×205(W)mm×65(H)mm
    Weight
1.5kg




























Specifications:

Auto-Buffer Recognition:

In calibration, the meter will display ERROR if you use pH standard solution by mistake or not by the calibration prompt.


Viewing of Electrode Slope:

After calibration, the meter will indicate electrode slope, you can judge by the indicator to replace electrode or not.

Automatic Temperature Compensation:
TR-HSP3BW with temperature sensor, which can measure temperature of solution and can automatic temperature compensation.


Keypad and Electrode Holder:
The meter with waterproof panel, it's user can not worry for the sample solution splashing over the meter. The electrode holder can be used conveniently.


What's included:
Meter, pH electrode, pH buffers, Electrode holder, Power adapters, Temperature probe (Only forTR-HSP3BW)

    Model
TR-HSP25CWTR-HSP3CWTR-HSP3BW
    pH Range
0.00~14.00pH0.00~14.00pH0.00~14.00pH
    pH Accuracy
 ±0.05pH ±0.01pH±0.01pH
    Resolution
0.01pH0.01pH0.01pH
    mV Range
0~±1999mV0~±1999mV0~±1999mV
    mV Accuracy
±2mV±2mV±2mV
     Temperature Range
------0~100.0oC
    Temperature  Accuracy
------±1oC
    pH Calibration Points
2 Points


     Set Buffer
NIST, pH4.00/6.86/9.18 or USA, pH4.01/7.00/10.01
     Temperature Compensation
0~100oC, Manual0~100oC, Manual0~100oC,   Automatic
    Power Requirements
DC9V, using AC adapters, 220VAC, 50Hz
    Dimensions
210(L)mm×205(W)mm×65(H)mm
    Weight
1.5kg
